Specifications
Frequency Response: 100Hz-30MHz
DC Bias Current Max.: 20A
Power consumption: 320W Max.
Accuracy (6632):
0.000A-1.000A 1%+5mA
1.001A-5.000A 2%
5.001A-20.000A 3%
DCR Test: Yes
Constant power output: Yes
Current switch: /
Graphic Scanning Analysis:
+ Frequency graphic scanning analysis
+ Magnetic saturation curve (Isat)
+ Rated current curve (Irms)

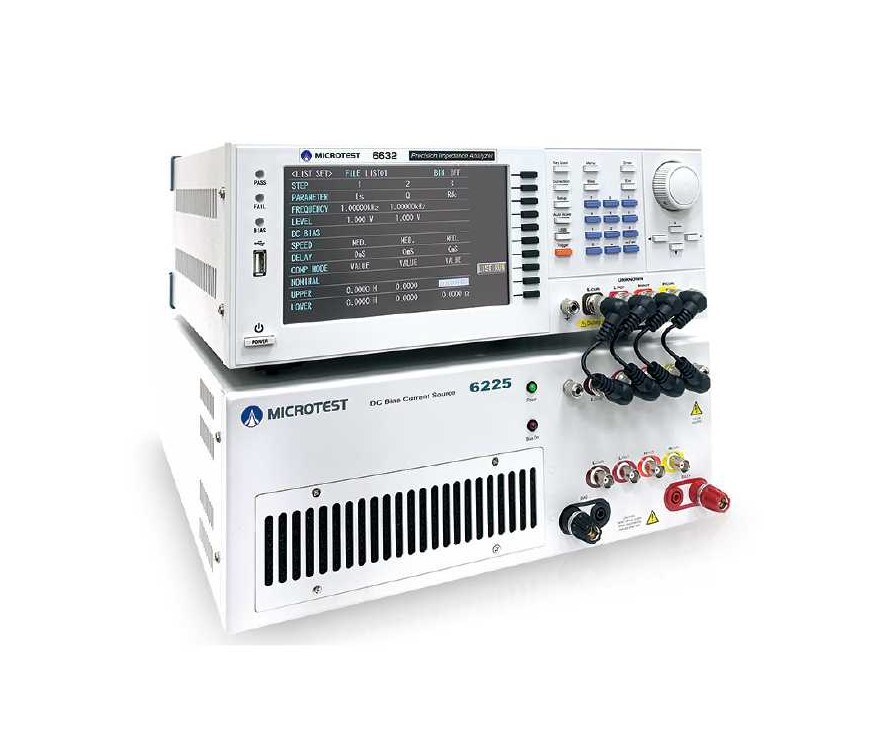

6632 Impedance Analyzer:
Frequency: 10Hz-50MHz
Frequency Setting: Continuity
Frequency Resolution: 100mHz, 6-bit Frequency Input
Frequency Output Accuracy: ±0.01%
Basic Accuracy: ±0.08% (typical ±0.05%)
AC Drive Level:
+ Test Signal Voltage Level: 10mV - 2Vrms(100Ω); 10mV - 1Vrms(25Ω)
+ Voltage Minimum Resolution: 1mV
+ Accuracy: ALC ON：6％ * Voltage ±2mV; ALC OFF：10％ * Voltage ±2mV
+ Test Signal Current Level: 200µA - 20mArms
+ Current Minimum Resolution: 10µA
+ Accuracy: ALC ON：6％ * Current ± 20µA; ALC OFF：10％ * Current ± 20µA
DC Drive Level: 1V (fixed)
Output Impedance: 25Ω/100Ω (switchable)
DC Bias Voltage:
+ Built-in ±12V: (100Hz-50MHz)
+ External Voltage Bias: (±12V/±40V/±600V/±2000V)
DC Bias Current:
+ Option DC Bias Current Source: (20A/60A/120A/320A)
+ External Voltage Bias: (100mA)
Measurement Mode: Meter mode, list mode, sweep mode, and optional equivalent circuit analysis function (S model)
Measurement Parameters: |Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、 ESR、εr 、μr
Test Time (Fastest): < 3mS
6632 Measurement Parameters
|Z| 0.000 mΩ to 9999.99 MΩ
R, X ± 0.000 mΩ to 9999.99 MΩ
|Y| 0.00000 μS to 999.999 kS
G, B ± 0.00000 μS to 999.999 kS
θRAD ± 0.00000 to 3.14159
θDEG ± 0.000° to 180.000°
Cs, Cp ± 0.00000 pF to 9999.99 F
Ls, Lp ± 0.00 nH to 9999.99 kH
D 0.00000 to 9999.99
Q 0.00 to 9999.99
Δ ± 0.00% to 9999.99%
Rdc 0.00 mΩ to 99.9999 MΩ
εr' εr'' 0 to 100000
μr' μr'' 0 to 100000
System
Measurement Circuit: Series/Parallel
Correction: Open Circuit/Short Circuit/Load correction
Cable Compensation: 0 / 0.5 / 1 /2 (m)
BIN: ABS、ΔABS、Δ%、OFF
Comparator: 9
List Mode: 50 groups of Multi-steps setting (Each group contains up to 15 steps)
Bulit-in Storge: 100 sets LCR setting documents, 50 groups of list mode setting
USB Host Storge: LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data
Trigger Test: Auto, manual, RS-232, GPIB, Handler
Power Supply: Voltage：88-264Vac; Frequency：47-63Hz
Power consumption: 30VA
Environment: Temperature：10℃-40℃; Humidity：20-90%RH
Dimension:
356x147x497 mm (W*H*D) /6225
336x147x340 mm (W*H*D)/ 6632
Weight:
15 Kg (6225)
3.95 Kg (6632)
Display: Color Screen, 7" TFT (800*480)/ 6632
Interface: RS-232、Handler
