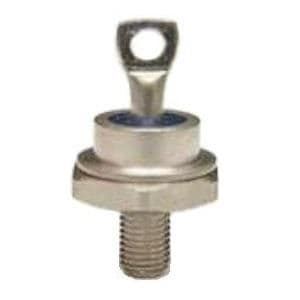

Microsemi JANTX1N3320B ເດຍອດ Zener 22V 2.5 Ohms 50W ຕົວຄວບຄຸມແຮງແສງ

Height: 23.8 mm

Diameter: 17.196 mm

Unit Weight: 7 g

Test Current: 570 mA

Configuration: Single

Zener Current: 1.9 A

Mounting Style: Through Hole

Voltage Tolerance: 5 %

Vz - Zener Voltage: 22 V

Ir - Reverse Current: 10 uA

Vf - Forward Voltage: 1.5 V

Zz - Zener Impedance: 2.5 Ohms

Pd - Power Dissipation: 50 W

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 0.08 %/C

Ir - Maximum Reverse Leakage Current: 10 uA
