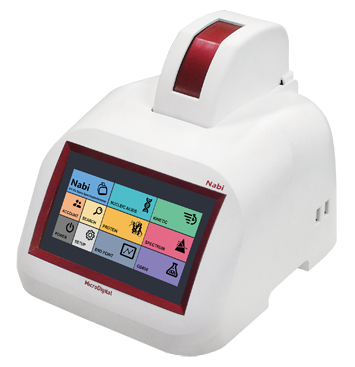

MicroDigital Nabi UV/Vis Nano Spectrometer (190 – 1,100 nm; ±1 nm)

General Specification

Light Source:Xenon Flash Lamp

Detector:CCD (2,048 Pixels), (reference beam available)

Wavelength Accuracy:±1 nm

Wavelength Range:190 – 1,100 nm

Spectral Resolution:0.3 nm

Dimension:

220 x 280 x 220 mm

8.6 x 11.0 x 8.6 in

Weight:5 kg

Operator Voltage:100 – 240 V, 50 – 60 Hz

Power Consumption:80 – 100 W

LCD Touch Panel:7.0 in

Nano Volume Specification

Absorbance Precision:1% at 100 ng/µl

Absorbance Range:0 – 400 Abs (10 nm equivalent)

Detection Limit:2 ng/µl (dsDNA)

Maximum Concentration:20,000 ng/µl (dsDNA)

Measurement Time:5 sec

Minimum Sample Size:1 µl

Path Length:0.01 – 1.2 mm (Auto-ranging)

Cuvette Specification

Beam Height:8.5 mm

Absorbance Range:0.002 – 2.0 Abs.

Measurement Time:3 sec
