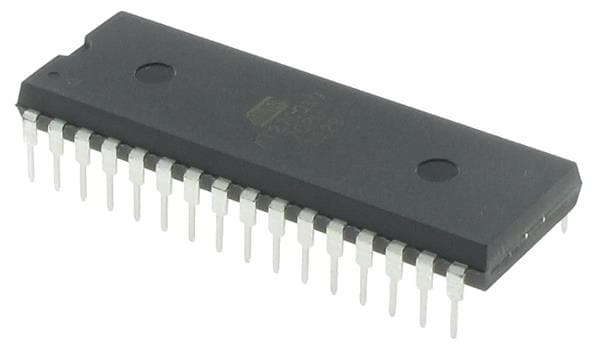

Microchip Technology SST39SF010A-70-4C-PHE No Boot Block 128K X 8 70ns

Speed: 70 ns

Width: 13.97 (Max) mm

Height: 3.81 (Max) mm

Length: 42.04 (Max) mm

Standard: Not Supported

Memory Size: 1 Mbit

Memory Type: NOR

Timing Type: Asynchronous

Unit Weight: 2.215 g

Architecture: Sector

Organization: 128 k x 8

Data Bus Width: 8 bit

Interface Type: Parallel

Mounting Style: Through Hole

Moisture Sensitive: Yes

Programming Voltage: 4.5 V to 5.5 V

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Active Read Current - Max: 25 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
