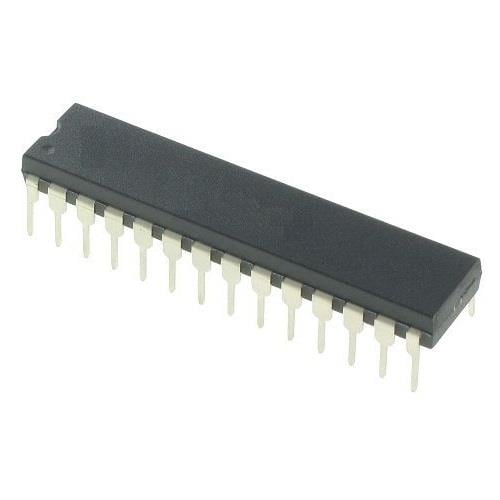

Microchip Technology PIC16F19156-I/SP MCUs 28KB Flash, 2KB RAM, 256KB EE, LCD, 12-bit ADC2, DAC, LP COMP, PWM, CCP, CWG, SMT, ZCD, PPS, RTCC, HLT, WWDT, PMD

Core: PIC16

Unit Weight: 22 g

Data RAM Size: 2 kB

Data RAM Type: SRAM

Data ROM Size: 256 B

Data ROM Type: EEPROM

ADC Resolution: 12 bit

DAC Resolution: 5 bit

Data Bus Width: 8 bit

Interface Type: EUSART, I2C, SPI

Mounting Style: Through Hole

Number of I/Os: 24 I/O

Watchdog Timers: Watchdog Timer, Windowed

Processor Series: PIC16F

Program Memory Size: 28 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.3 V

Number of ADC Channels: 20 Channel

Maximum Clock Frequency: 32 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
