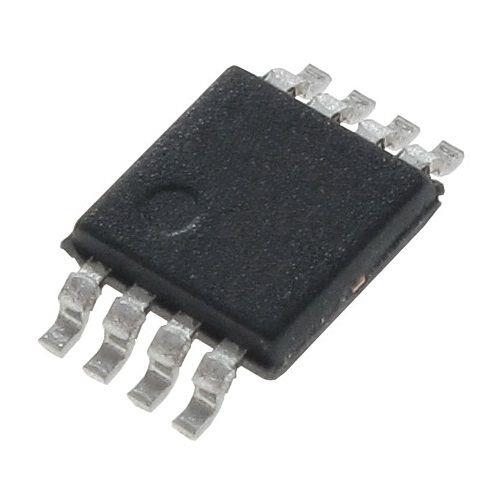

Microchip Technology MCP6D11-E/MS ເຄື່ອງເພີ່ມສະແຕຣງຄ່າຕ່າງ Single, Fully Differential Amplifier, E Temp

Output Type: Rail-to-Rail

Unit Weight: 20 mg

Settling Time: 200 ns

Mounting Style: SMD/SMT

SR - Slew Rate: 25 V/us

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Ib - Input Bias Current: - 700 nA

Operating Supply Current: 1.4 mA

Output Current per Channel: 75 mA

Vos - Input Offset Voltage: 150 uV

GBP - Gain Bandwidth Product: 90 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 5 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 95 dB

PSRR - Power Supply Rejection Ratio: 100 dB
