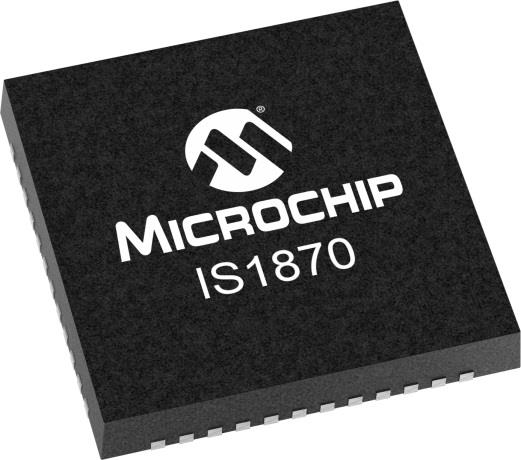

Microchip Technology IS1870SF-102-TRAY BLE Bluetooth BLE5 IC, 6x6mm, ອຸດສາຫະກຳ Temp

Core: 8051

Width: 6 mm

Height: 0.9 mm

Length: 6 mm

Technology: Si

Sensitivity: - 90 dBm

Output Power: 0 dBm

Data RAM Size: 24 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 8 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 31 I/O

Operating Frequency: 2.4 GHz

Program Memory Size: 256 kB, 32 kB

Program Memory Type: Flash, ROM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.9 V

Number of ADC Channels: 16 Channel

Supply Current Receiving: 10 mA

Supply Current Transmitting: 10 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
