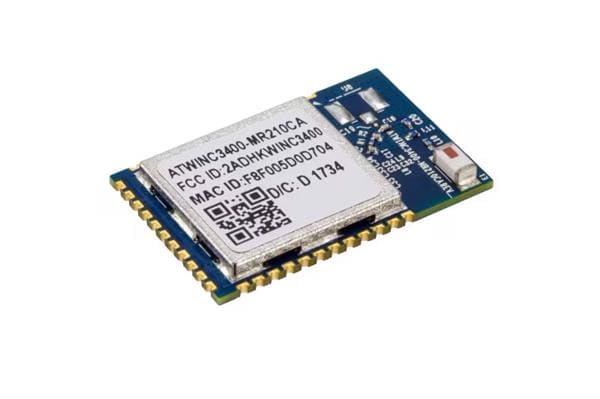

Microchip Technology ATWINC3400-MR210UA122 ໂມດູນ Multiprotocol b/g/n + ໂມດູນ Bluetooth 4 ສາຍອານເທນາ U.FL

Security: WEP, WPA, WPA2

Data Rate: 72 Mb/s

Frequency: 2.4 GHz

Dimensions: 22.43 mm x 14.73 mm x 2 mm

Unit Weight: 11.210 g

Output Power: 18.3 dBm

Interface Type: I2C, SPI, UART

Moisture Sensitive: Yes

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 2.7 V to 3.6 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 64 mA

Supply Current Transmitting: 265 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
