Accuracy: ± (1 % of the reading + 2 ppb)

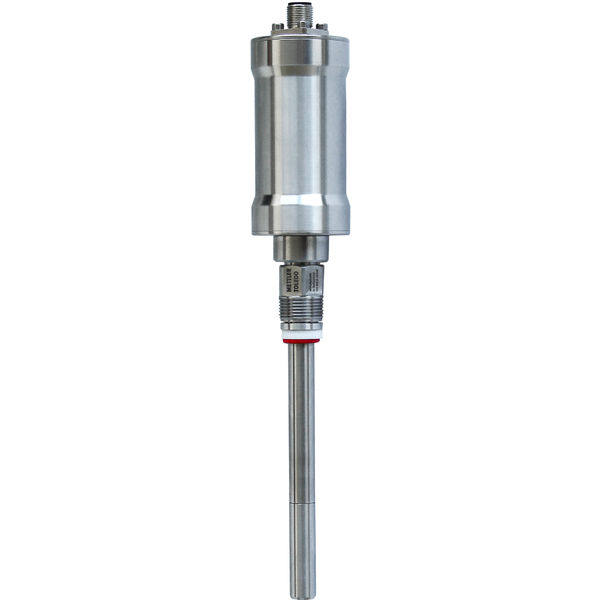

Model Family: InPro 6900i optical series
CIP resistant: Yes
Response Time: T98 = < 20 s
Sensor Length: 220 mm
Cable Connector: M12 5-Pin
Design Pressure: 174 psi (12 bar)
Detection limit: 2 ppb
O-Ring Material: EPDM
Operating Range: 2 ppb – 2,000 ppb
Sensor Diameter: 12mm
Connector Design: Straight
Measurement Range: 0- 2000 ppb saturation
Process Connection: Pg 13.5
Digital Integration: RS485 - ISM®
Measurement Parameter: Oxygen
Measuring Temp. Range: 23 °F – 104 °F (-5 °C – 40 °C)
Measurement Technology: Optical fluorescence quenching
Mechanical Temp. Range: 23 °F – 250 °F (-5 °C – 121 °C)
ISM (Digital) or Analog: ISM (Digital)
Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate, FDA/USP Class IV
Operating Pressure (Bar): 0.2–12 Bar
Operating Pressure (PSI): 02.9–174 PSI
Wetted Metallic Material: 316L stainless steel
Wetted membrane material: Silicone
Autoclavable/Sterilizable: Yes
Primary Media/Application: Food and Beverage
Sterilizable/Autoclavable: Sterilizable
Measured Pressure Resistance: 0.2 bar – 12 bar
Residual signal in O2 free media: <0.025 of signal in ambient air
Hygienic/Biocompatibility Approvals: FDA/USP Class 7
Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)
