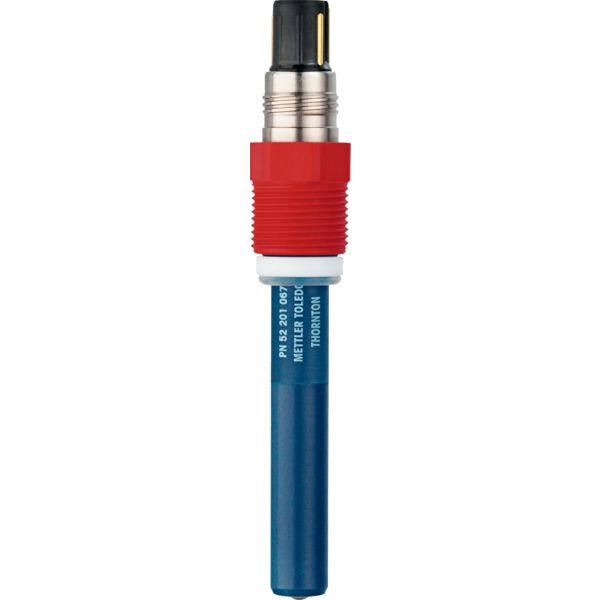

Mettler Toledo 52201067 DO Sensor UPW Polarographic

Cable: N/A

Preamp: Integral

Weight: 1 kg (2 lb) with flow housing

Accuracy: ± 1% of reading or 1 ppb, whichever is greater ± 0.5 °C

Flow Rate: 0.79 gal/h – 18.85 gal/h (50 mL/min – 1,000 mL/min)

Model Family: UPW DO sensors

Response Time: 98% in 90 seconds

Sensor Length: 210 mm

Material Number: 52201067

Operating Range: 0 ppb – 10,000 ppb

Cable Connection: 1/4” NPT(M)

Wetted Materials: PTFE membrane reinforced with stainless steel and silicone rubber, Viton® and silicone rubber o-rings Polyacetal flow housing Polyphenylene sulfide probe body

Measurement Parameter: Oxygen

Measurement Technology: Amperometric/Polarographic

ISM (Digital) or Analog: Analog

Autoclavable/Sterilizable: No

Primary Media/Application: Pharmaceutical Waters Power Plant Water/Steam Semiconductor Water

Measured Pressure Resistance: 0 psig – 72 psig (0 bar – 5 bar)

Intelligent Sensor Management (ISM®): No

Measuring Temperature Range (Celsius): 0°C – 60°C for temperature compensation can tolerate 100°C

Measuring Temperature Range (Fahrenheit): 32°F – 140°F for temperature compensation can tolerate 212°F
