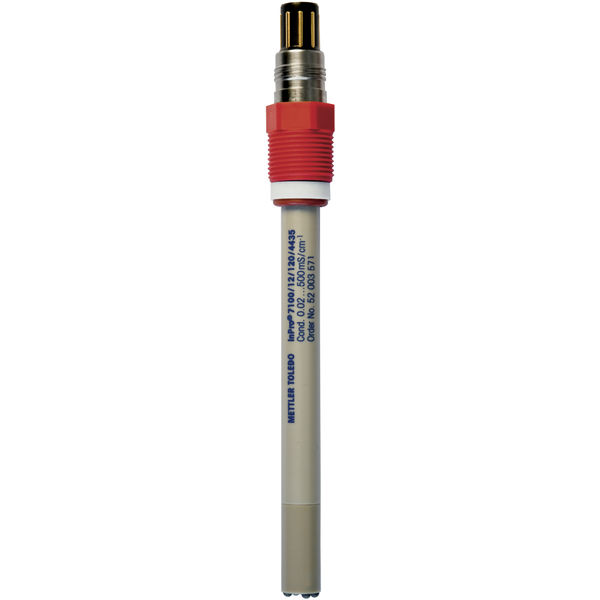

Mettler Toledo 52003572 Cond Sensor InPro7100/12/120/C22

Connection: VP (IP68)

Model Family: 4-electrode sensor

Sterilizable: Yes

Sensor Diameter: 12mm

Sensor Material: PEEK (FDA), Hastelloy C-22

System accuracy: ± 5 % or better

Cable Connection: Vario Pin (IP68)

Measurement Range: 0.02…400mS/cm

Electrode Material: Hastelloy C22

Process Connection: Pg 13.5

Temperature Sensor: PT 1000

Measurement Technology: Conductive

Cell Constant (nominal): 0.31 cm–1

Hazardous Area Approvals: Yes

Primary Media/Application: Chemical, pharmaceutical and F&B processes

Measured Pressure Resistance: 0 - 145 psi @ 302 °F 0 - 290 psi @ 275 °F (0 - 10 bar @ 150 °C 0 - 20 bar @ 135 °C)

Operating Temperature (Celsius): -20...150 °C

Operating Temperature (Fahrenheit): -4...302 °F

Hygienic/Biocompatibility Approvals: No

Mechanical Pressure Resistance (Bar): 0 ...20 bar at 135 °C0 ...10 bar at 150 °C

Mechanical Pressure Resistance (PSI): 0 ... 290 psi at 275 °F0 ... 145 psi at 302 °F
