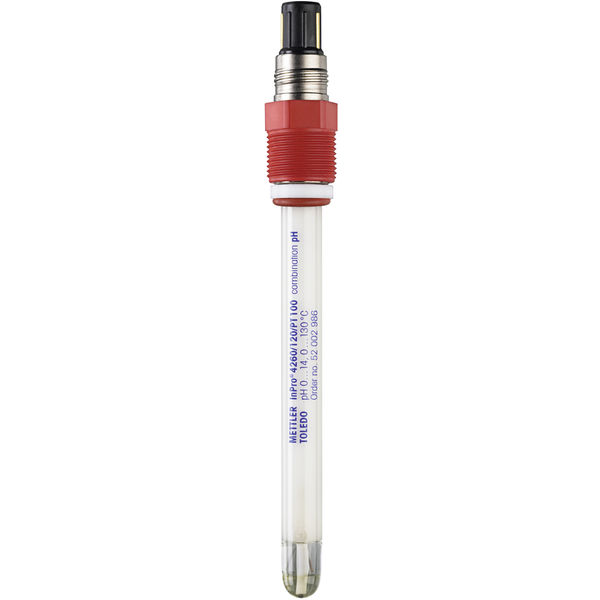

Mettler Toledo 52003550 pH Sensor InPro4262/120/PT1000

pH Range: 1 – 14

Model Family: InPro4260(i)

Sensor Length: 120 mm

Shaft Material: Glass

Cable Connector: VP

Reference System: Xerolyt Extra polymer electrolyte, open double junction, Argenthal cartridge with silver-ion trap

Process Connection: Pg 13.5 Thread

Temperature Sensor: PT 1000

Measurement Parameter: pH

pH Sensing Technology: Hydrofluoric Acid Resistant Glass Membrane (HF)

Refillable Electrolyte: No

ISM (Digital) or Analog: Analog

Certificates & Approvals: ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb CE FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 METTLER TOLEDO Quality Certificate PED

Hazardous Area Approvals: Yes

Operating Pressure (Bar): 0 to 15 barg @ 25°C 0 to 7 barg @ 130°C

Operating Pressure (PSI): 0 to 101 psig @ 266°F 0 to 217 psig @ 77°F

Primary Media/Application: Chemical Processes

Sterilizable/Autoclavable: No

Operating Temperature (Celsius): 0 °C - 130 °C

Operating Temperature (Fahrenheit): 32 °F - 266 °F

Hygienic/Biocompatibility Approvals: No
