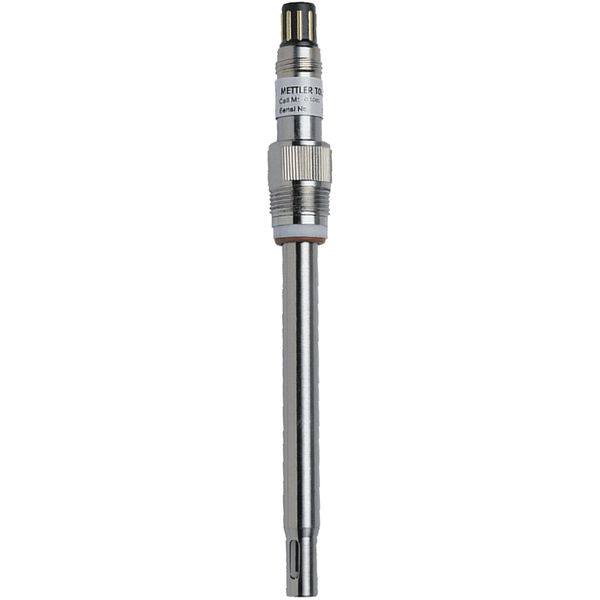

Mettler Toledo 52001997 Cond Sensor InPro7001/120-VP

Model Family: 2-electrode sensor

Sterilizable: Yes

Cell Constant: 0.1 cm-1

O-Ring Material: Viton® (FDA)

Sensor Material: 316L SS

Cable Connection: Vario Pin (IP 68)

Measurement Range: 0.02-500 µS/cm

Electrode Material: SS 316L

Process Connection: Pg 13.5

Temperature Sensor: PT 1000

Measurement Technology: Conductive

Cell Constant (nominal): 0.1 cm–1

Cell Constant (accuracy): ± 1.0 %

Hazardous Area Approvals: Yes

Primary Media/Application: Other Water Processes Pharmaceutical Waters

Measured Pressure Resistance: 0 – 100 psig @ 203 °F 0 – 246 psig @ 77 °F (17 bar @ 25 °C 7 bar @ 95 °C)

Operating Temperature (Celsius): -10...100 °C

Operating Temperature (Fahrenheit): 14...212 °F

Hygienic/Biocompatibility Approvals: Yes

Mechanical Pressure Resistance (Bar): 17 bar (25°C), 7 bar (95°C)

Mechanical Pressure Resistance (PSI): 250 psi (77 °F), 100 psi (203 °F)

Surface Roughness of Wetted Metal Parts: Polished N4 (Ra < 0.2 μm) (Ra < 8 μin)
