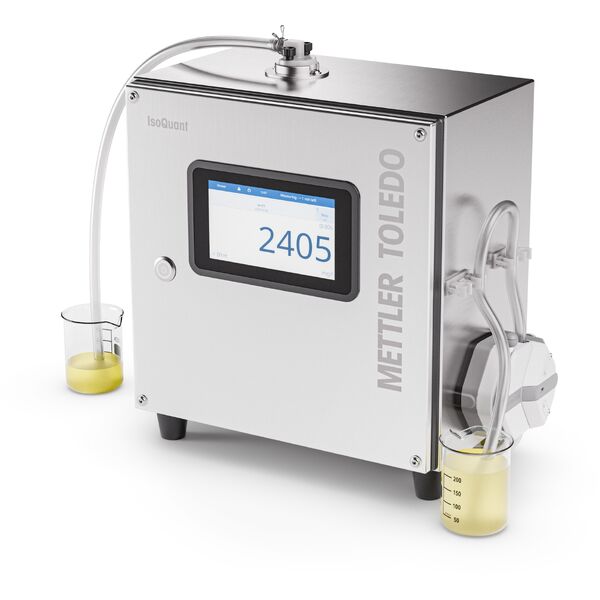

Mettler Toledo 31002710 qNMR Analyzer Automate IsoQuant

Weight: 28 kg

Accuracy: Better than ±2 % under factory calibration conditions

Technique: (TD-NMR) Spectroscopy Time Domain Nuclear Magnetic Resonance

Compliance: Electromagnetic compatibility: EN 61326-1:2013/2021 Emission: FCC Part 15 Subpart B, Class B device IP class IP54: IEC 61010-1 Indoor use: IEC 61010-1 Overvoltage CAT 2: IEC 61010-1 Polution degree 2: IEC 61010-1

Sample Type: Liquid cream paste

Applications: Chloride ion content determination Salt content determination Sodium ion content determination

Precision ±: 100 @ 4 mins measurement interval (Chloride) 8 @ 1 min measurement interval (Sodium)

Interface Type: Ethernet HDMI USB

Foundation Type: Hardened rubber pads

Measurement Range: 2 to 300,000 ppm (Sodium Content) 50 to 500,000 ppm (Chloride Content)

Dimensions (HxWxD): 450 mm x 470 mm x 270 mm

Ingress Protection: IP54

Limit of Detection: Dependent on parameter and measurement time

Input Voltage Range: 100 V - 240 V

Storage Temperature: -5 °C - 64 °C

Measurement Precision: 0.1 to 10,000 (mg L-1) Dependent on parameter and measurement time

Maximum Power Consumption: 120 W

Active Measurement Chamber Size: 11 mm diameter × 31 mm height

Operating Temperature (Celsius): 5 °C - 40 °C

Typical Power Consumption Measuring Mode: 53 W

Typical Power Consumption in Standby Mode: 20 W

Storage Humidity, relative (non-condensing): 5 % - 95 %

Operating Humidity, relative (non-condensing): 5 % - 85 %
