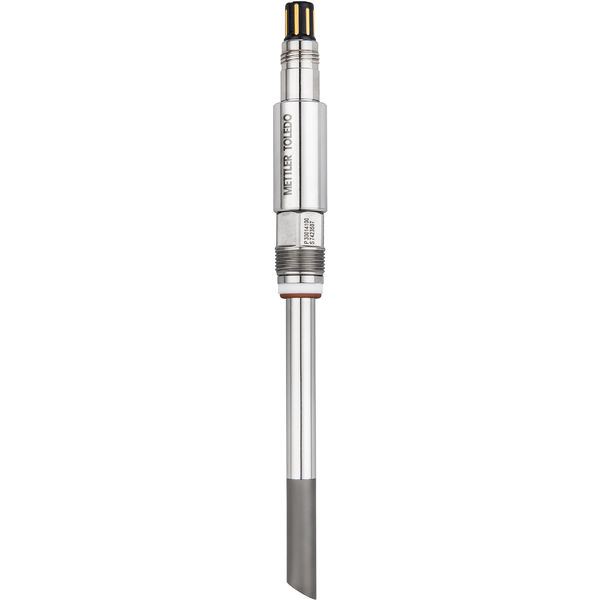

Mettler Toledo 30526901 DO Sensor InPro6860i/12/320/nA/HD

Power: 25 V DC 0.1 A

Accuracy: ± (1 % of the reading + 8 ppb)

Model Family: InPro 6860i

CIP resistant: Yes

Response Time: T98 = < 90 s

Sensor Length: 590 mm

Cable Connector: VP6 / VP8 (analog / digital)

Design Pressure: 87 psi (6 bar)

O-Ring Material: EPDM

Sensor Diameter: 12mm

Connector Design: Straight

Measurement Range: 0...saturation

Analog Integration: Simulated electrochemical nA signal

Anti-Bubble Design: Yes

Process Connection: Pg 13.5

Digital Integration: RS485 - ISM® and MODBUS RTU

Measurement Parameter: Oxygen

Measuring Temp. Range: 41 °F – 140 °F (5 °C – 60 °C)

Measurement Technology: Optical fluorescence quenching

Mechanical Temp. Range: -4 °F – 284 °F (-20 °C – 140 °C)

ISM (Digital) or Analog: ISM (Digital)

Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate, ATEX/IECEx certificate, FDA/USP Class IV

Hazardous Area Approvals: ATEX/IECEx: II 1/2G Ex ia/ib HC T6 Ga/Gb II1/2D Ex ia/ib nie T83 °C Da/Db

Operating Pressure (Bar): 0.2–6 Bar

Operating Pressure (PSI): 0–87 PSI

Wetted Metallic Material: 316L stainless steel

Wetted membrane material: PTFE

Autoclavable/Sterilizable: Yes

Primary Media/Application: Pharmaceutical/Life Science Production

Sterilizable/Autoclavable: Yes

Measurement Range (Concentration): 0–60 % O2 saturation

Hygienic/Biocompatibility Approvals: FDA/USP Class 7

Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)

Intelligent Sensor Management (ISM®): Yes
