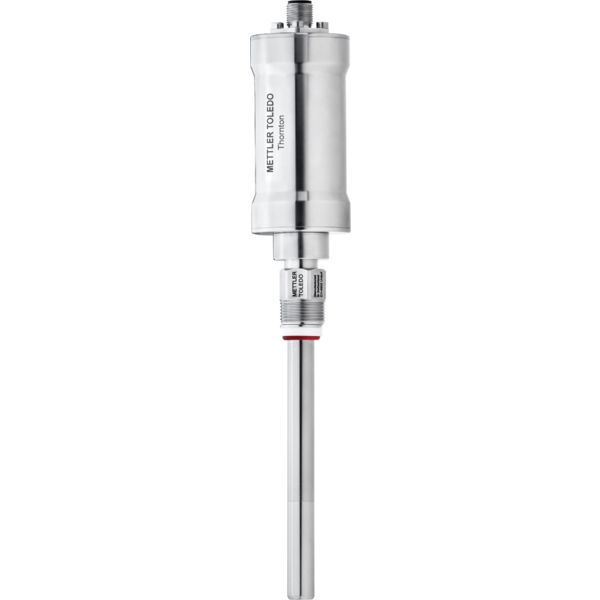

Mettler Toledo 30041040 Sensor PureWater ISM Optical DO

Accuracy: ± 2% of reading or 2ppb, whichever is greater

Sample Rate: Adjustable between 1 and 60 seconds

Model Family: UPW DO sensors

Response Time: 98% of final value in <20s

Sensor Length: 120 mm

Cable Connector: 5-pin

O-Ring Material: EPDM (FDA-positive listed)

Sensor Diameter: 12 mm

Connector Design: Straight

Wetted Materials: Stainless steel, silicone, EPDM O-ring

Measurement Range: 0-5000 ppb

Membrane Material: Silicone

Other certificates: CE

Process Connection: ¼" NPT(F)

Measurement Parameter: Oxygen

Measurement Technology: Optical fluorescence quenching

ISM (Digital) or Analog: ISM (Digital)

Hazardous Area Approvals: No

Operating Pressure (Bar): 0.2 - 12 bar

Operating Pressure (PSI): 2.9 - 174 psi absolute

Temperature compensation: Automatic

Autoclavable/Sterilizable: No

Primary Media/Application: Power Plant Water/Steam Semiconductor Water

Operating Temperature (Celsius): 0 to 121°C

Operating Temperature (Fahrenheit): 32 to 250°F

Hygienic/Biocompatibility Approvals: No

Mechanical Pressure Resistance (Bar): Maximum 12 bar

Mechanical Pressure Resistance (PSI): 2.9 - 174 psi absolute

Measuring Temperature Range (Celsius): 0 - 50 °C

Measuring Temperature Range (Fahrenheit): 32 - 122 °F
