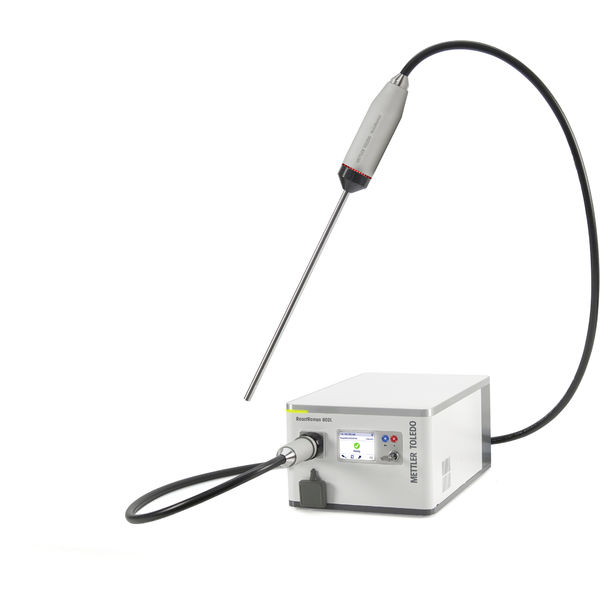

Mettler Toledo 140040001 Raman Spectrometer, ReactRaman 802L

Power: 100-240 VAC, 50/60Hz, 2.5A

Detector: Deep Cooled CCD

Software: iC Raman 8

For Use In: Laboratory: EasyMax/OptiMax

Certifications: MET-C/US Standards: EN/IEC 61010-1, CSA C22.2 No. 61010-1, EN/IEC 61326, Class A digital device compliant to FCC Part 15 Rules

Excitation Power: Max: 400mW, Software Selectable

Fiber Connections: SmartConnectTM

Base Unit Dimension: H: 142mm [5.6 in.] W: 206mm [8.1 in.] L: 326mm [12.8 in.]

Probe Wetted Length: 305mm [12 in.]

Sampling Technology: Fixed or interchangeable probes flowcell, non-contact options compatible with interchangeable Fiber Head

Laser Classification: Class IIIB laser. Compliant with 21 CFR 1040.10 and 1040.11

Base Unit Description: Laboratory base unit

Excitation Wavelength: 785 nm

Probe Wetted Diameter: 9.5mm [0.375 in]

Probe Wetted Material: C-22, Sapphire, Gold Seal

Probe Temperature Range: -40°C to 300°C

Optical Range (Base Unit): 150cm-1 to 3400cm-1

Base Unit Dimension (LxHxW): 326 mm x 142 mm x 206 mm

Base Unit Temperature Range: 5 °C – 35 °C
