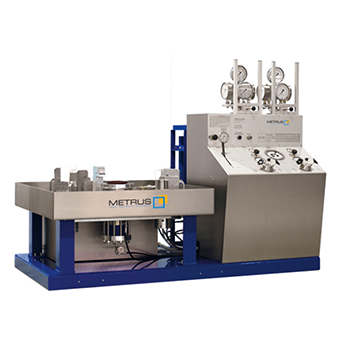

METRUS SV 50/400 Test Bench ສໍາລັບຄວາມປອດໄພວາວ (50 tons, 15~400mm)
ຜູ້ຜະລິດ: METRUS Model: SV 50/400 ທີ່ມາ: Germany ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Clamping range: DN15-DN400 1/2''-16'', Max. test pressure: 33~600 bar
Clamping force: 50 tons
Way of clamping: hydraulic clamping system with 3 and 2 claws (alternatively)
Test fluid: Gas/air (external supply)
Pressure piping: PN600 bar stainless steel
Stainless steel control panel
Anodized, chemical resistant front panel
Bubble counter + rubber plugs up to DN 100
Safety interlock - prevents opening of clamping unit when system is pressurized.
Gauge quick connection for tool free change of gauges
METRUS Precision valves
Options:
Water testing up to 600 bar with test fluid, st. steel drip pan and two chamber water tank, closed water circuit
Bladder accumulator for water testing
Internal air booster up to 400 bar.
Safety pressure limitation system
Gauge turret for 4+1 gauges
Safety cabinet for clamping unit
CRS with panel PC
ESD Emergency Shut Off
