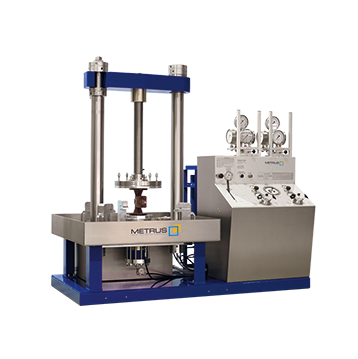

METRUS SV 50/400 E Test Bench ສໍາລັບຄວາມປອດໄພວາວ (50tons, 15~400mm)
Clamping range: DN15-DN400 1/2“-16“
Clamping force: 50 tons
Way of clamping: hydraulic clamping system with 3 and 2 claws (alternatively)
Test fluid: Gas/air (external supply)
Pressure piping: PN600 bar stainless steel
Stainless steel control panel
Anodized, chemical resistant front panel
Bubble counter + rubber plugs up to DN 100
Safety locking - prevents opening of clamping unit when system is pressurized.
Gauge quick connection for tool free change of gauges
METRUS Precision valves
Options:
Water testing up to 600 bar with test fluid separation - separate measuring system, separate needle valves, st. steel drip pan
Closed water circuit - 2 chamber stainless steel tank, fi lling pump, maintenance free evacuation system
Bladder accumulator for water testing
Internal high pressure air generation via booster up to 400 bar.
Safety pressure limitation system
Gauge turret for 4+1 gauges
Safety cabinet for clamping unit
CRS with panel PC
ESD Emergency Shut Off
