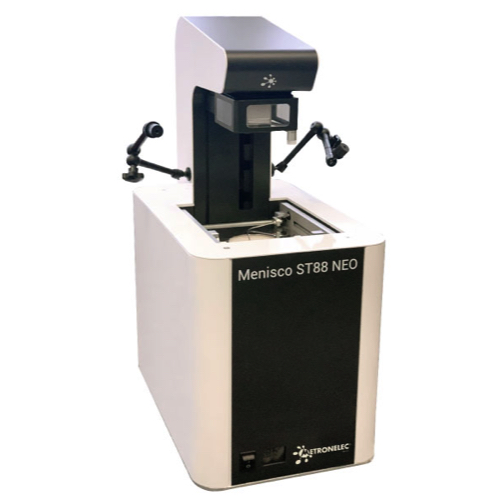

Metronelec MENISCO ST88 NEO ຄວາມດຸ່ນດ່ຽງການປຽກ - ເຄື່ອງທົດສອບຄວາມສາມາດໃນການເຊື່ອມ (0.1-50mm/s; 0-450°C; 2 kg)
Dipping speed: 0.1-50mm/s by step of 0.1 mm/s
Immersion depth: 0.01-15mm by step of 0.01 mm
Dwell time: 3 to 120 s (more on demand)
Max. net component weight: 35 g
Solder bath diameter: 80 mm
Solder bath capacity: 2 kg
Globule size (mm): 1, 2, 3.2 and 4mm
Temperature setting range: 0-450°C
Temperature controlling accuracy: + /- 1 ° (standard request 3°C)
Weight sensor type: LVDT
Force measurement accuracy: 0.001 mN
Force measurement range: 0.1 mN to 40 mN
Position sensor type: Hall effect
Stroke: Z-axis accuracy: 0.01 mm
Operation software: Windows 10
Data output format: Graph expressed in force or angle, table of values from clipboard or ASCI from file, report with pass/fail, video, picture.
Graph with curve: Yes
SPC monitor: Yes
Data shown with "pass and reject" after each test: Yes
Programmable of test parameter by PC: Yes
Maximum storage of tested data: No limit
Maximum test program available: No limit
Test cycle time (0402 passive): 60 s
Closed loop control (motor): Yes
Video capture: Yes
Machine dimensions (Without packaging): 310 width x 500 large x 720 height
Electrical input: 110-220vac, 50/60Hz @5amp
Nitrogen input: 4-6 bar, 4-6 mm tube
Net machine weight: 40 kg
Language: Chinese, English, French and German
