HUMAN-MACHINE INTERFACE
- Type of display: 7‘’ WVGA colour TFT LCD touch screen, 800x480 – LED backlighting (adjustable standby mode)
- Different display mode: 2,500 real acquisition points on screen - Vectors with interpolation
- Display of curves on screen: 4 curves + 4 references – Split Screen & Full Screen modes
- Screen commands: Touch screen – ANDROID-type icons and graphical commands – customizable channel colours
- Choice of language: 15 complete languages, menus & online help
OSCILLOSCOPE MODE
Vertical deflection
- Bandwidth: 300 MHz; 15 MHz, 1.5 MHz or 5 kHz bandwidth limiter
- Number of channels: 4 isolated channels
- Input impedance 1 MΩ ± 0.5% , approx. 12 pF
- Maximum input voltage 600 V / CAT III (1,000V per Probix) – from 50 to 400 Hz – Probix safety connectors
- Vertical sensitivity 16 calibres from 2.5 mV to 200 V/div and up to 156 µV/div in vertical zoom mode (12-bit converter) – Accuracy ± 2%
- Vertical zoom "One Click Winzoom" mode (12-bit converter and direct graphical zoom on screen) – x 16 max.
- Probe factor (non-Probix) 1 / 10 / 100 / 1,000 or any scaling – definition of measurement unit
Horizontal deflection
- Sweep speed 35 calibres from 1 ns/div to 200 s/div., accuracy ± [50 ppm + 500 ps] – Roll mode from 100 ms to 200 s/div
- Horizontal zoom "One Click Winzoom" system (direct graphical zoom on screen) x 1 to x 5 or x 100 – storage 100 kpts/channel
Triggering
- Mode On all the channels: automatic, triggered, one-shot, auto level 50%
- Type Edge, pulse width (16 ns-20 s), delay (48 ns to 20 s), counting (3 to 16,384 events)
- Continuous adjustment of Trigger position
- Coupling AC, DC GND, HFR, LFR, noise – Level and Hold-Off adjustable from 64 ns to 15 s
- Sensitivity ≤ 1.2 division p-p up to 300 MHz
Digital storage
- Maximum sampling rate 2.5 GS/s in one-shot mode on each channel (100 GS/s max. in ETS mode)
- Vertical resolution 12 bits (vertical resolution 0.025 %)
- Memory depth 100 kpts per channel and file viewer in the manager
- User storage/ File management:
Internal = 1 GB to store the files: trace, text, configuration, math functions,
System memory: .pdf print files, .png image files
+ high-capacity removable 2 GB µSD-Card, SDHC 4-32 GB and SDXC > 32 GB
- GLITCH mode: Duration ≤ 2 ns – 500,000 Min/Max pairs
- Display modes: Envelope, vector, accumulation-, averaging (factors 2 to 64) – XY (vector) and Y(f)=FFT
Other functions
- AUTOSET: Complete in under 5 s, with recognition of the channels – Frequency > 30 Hz
- FFT analyser & MATH functions: 2,500-point FFT (Lin or Log) with measurement cursors – Functions + , - , x , / and mathematical function editor
- Cursors: 2 or 3 cursors: simultaneous V and T with AUTO measurement: T1, T2, Dt, 1/Dt, dBV, Ph
- Automatic measurements: Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll
MULTIMETER MODE
- General specifications: 2 or 4 channels – 8,000 cts min/max/frequency/relative – TRMS – Time/date-stamped graphical recording in logger mode
- AC, DC and AC + DC voltages: 600 mV to 600 VRMS, 800 mV to 800 VDC – VDC accuracy +/- (0.5 % + 25 D) – 200 kHz bandwidth
- Resistance: 80 Ω to 32 MΩ – accuracy 0.5%R+ 25D – Quick continuity test < 10 ms
- Other measurements: Temperature (HX0035 = KTC, HX0036 = Pt100) / Capacitance 5nF to 5mF / Frequency 200 kHz / Diode test 3.3 V
- Single and three-phase power: Active, Reactive and Apparent power values plus Power Factor simultaneously with the U & I measurements
HARMONIC ANALYSER MODE
- Multi-channel analysis: 2 or 4 (depending on model), 63 orders, fundamental frequency 40 to 450 Hz in auto or manual mode
- Simultaneous measurements: Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)
LOGGER MODE
- Acquisition Duration: 20,000 s – Interval: 0.2 s – Files: 100,000 measurements
GENERAL SPECIFICATIONS
- Configuration memories: Not limited according to device - variable file sizes
- Printing: Network printing via Ethernet/Wifi in .png format
- PC communication – software link: Ethernet (100 baseT), WiFi-USB (device, 12 Mbs) – "ScopeNet" application software for PC
- Software PC: Ethernet and USB, ScopeNet (remote control, data recovery, cursors and automatic measurements)
Android tablet – ScopeAdmin Fleet Administration utility
- Mains power supply: Li-Ion rechargeable battery (6,900mAH-40 Wh) – Battery life of up to 8 hrs – Adjustable standby mode
Adapter / 2-hour fast charger, universal 98-264 V / 50/60 Hz)
- Safety / EMC: Safety as per IEC 61010-2-30, 2010 – 600 V CAT III / 1000 V CAT II – EMC as per EN61326-1, 2010
- Mechanical specifications: 292.5 x 210.6 x 66.2 mm – 2.1 kg with batteries – IP54 protection
Accessories:

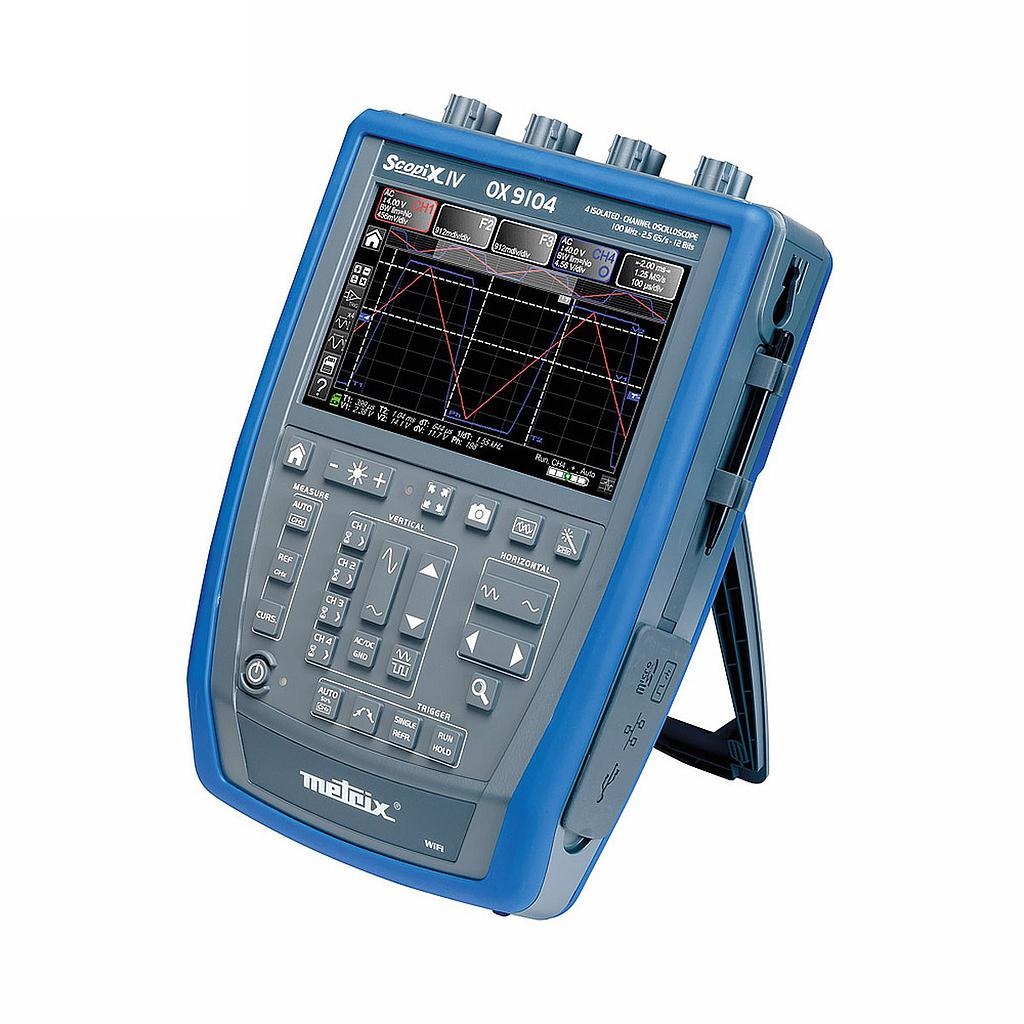

- 1 SCOPIX IV oscilloscope delivered with a carrying bag,
- a PA40W-2 mains power pack/charger and 1 2P EURO mains power cable,
- 1 Li-Ion battery pack,
- 1 stylus,
- 1 Ethernet cable,
- 1 USB cable,
- 2 safety leads (red, black), 2 x Ø 4 mm; test probes (red, black), 2 or 4 voltage probes depending on models,
- 1 μSD card (8 GB),
- 1 USB/ μSD adapter,
- 1 hand strap,
- 1 PROBIX BNC+1 PROBIX BANANA,
- USB installation procedure for use of ScopeNet data export software on CD-ROM,
- 1 PDF user’s manual (>5 languages),
- 1 start-up guide on paper and 1 safety datasheet in 20 languages.
Optional accessories:
HX0030B - PROBIX 1/10 1000V PROBE 250MHZ-LED-COMMANDS
HX0031 - PRHX4 Probix / BNC Adapter
HX0032 - PRHX5 Probix Adapt.50 Ohms
HX0033 - PRHX6 Probix / Banana Adapter
HX0034 - PROBIX 0.02A-60A/500KHZ
HX0035B - Probix/K TC Conn.
HX0036 - PROBIX/PT100 Conn.
HX0061 - 10-60V SCOPIX Power supply
HX0064 - CMS Clamp Banana Lead
HX0071 - HX0030 INDUST.ACCESS.KIT
HX0072 - 0.5-3KA 200KHZ PROBIX FLEX
HX0073 - 0.5-300A 3MHZ PROBIX FLEX
HX0080 - USB - Micro SD Adapt.
HX0093 - 300HZ PROBIX FILTER
HX0094 - 4-20MA PROBIX
HX0095 - 1000V BANANA PROBIX
P01102130 - LI-ION BATT Pack charge support for C.A6116N/6117
P01296047 - Pack Batt 5.8AH 693942A00
