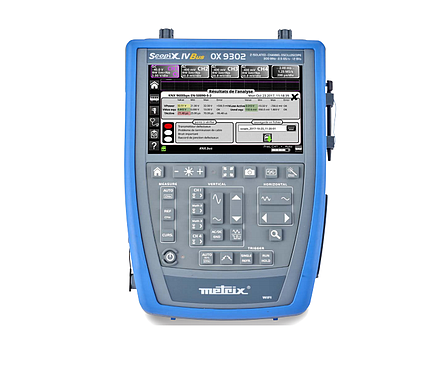

Type of display : 7‘’ WVGA TFT colour LCD touch screen, 800x480– LED backlighting (adjustable standby mode)
Bandwidth: 300 MHz
Number of channels: 2 isolated channels
Vertical sensitivity 1: 6 ranges from 2.5 mV-200 V/div and down to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 2%
Sweep speed: 35 ranges from 1 ns/div to 200 s/div, accuracy ± [50ppm +500ps] – Roll mode from 100 ms to 200 s/div
Triggers: On all channels: automatic, triggered, one-shot, auto level 50%
Edge, pulse width (16 ns-20 s), delay (48 ns to 20 s), counting (3 to 16,384 events)
Continuous adjustment of Trigger position
Maximum sampling rate: 2.5 GS/s in one-shot mode on each channel (max. 100 GS/s in ETS mode)
Vertical resolution: 12 bits (vertical resolution 0.025 %)
Memory depth : 100 kpts per channel and file viewer in the manager
User memory: Internal = 1 GB to store the files + high-capacity removable μSD-Card : SD 2 GB, SDHC 4-32 GB and SDXC > 32 GB
Other functions: AUTOSET, FFT analyser & MATH functions, cursors, automatic measurements
PC – software link communication: Ethernet (100 baseT), WiFi-USB (device, 12 Mbs) – "ScopeNet" application software for PC
Safety / EMC: Safety as per IEC 61010-2-30, 2010 – 600 V CATIII / 1000 V CATII – EMC as per EN 61326-1, 2010
Mechanical specifications: 292.5 x 210.6 x 66.2 mm – 2.1 kg with batteries – IP54 protection
State at delivery
Oscilloscope delivered in a bag with 1 mains adapter / charger, 1 LI-ION battery pack, 1 stylus, 2 x 1/10 Probix HX0130 probes, 1 Probix banana adapter diam. 4 mm, 1 set of
cables + 4 mm banana test probe, 1 Ethernet cable, 1 USB cable, 1 µSD card with 8 GB capacity and SD card adapter, HX0190 and HX0191 bus connection boards, 1 CD-Rom
with user’s manual, programming manual, SX-BUS 2.0 software
