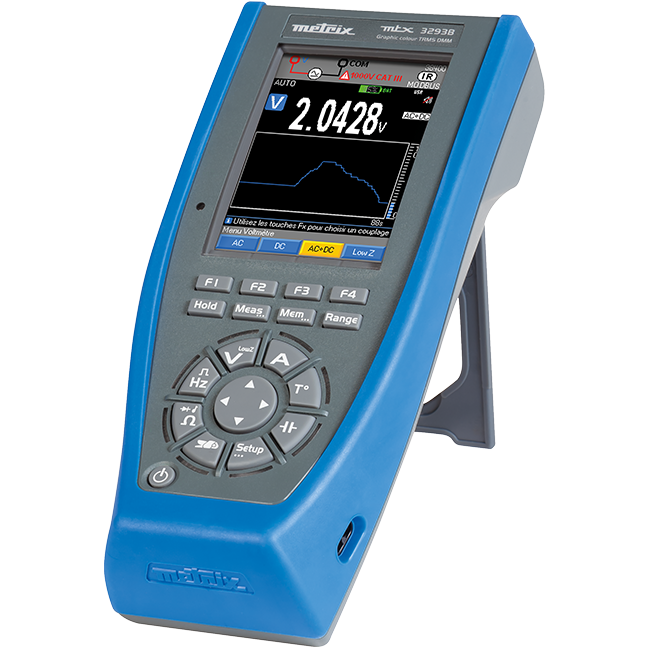

METRIX MTX 3293B Digital Multimeter (1000 V, 20 A, 200 kHz (DC, AC & AC+DC), TRMS)
ELECTRICAL
DC, AC & AC+DC Voltages: 100 mV to 1000 V
Voltage DC Accuracy: ± 0.02 %
AC & AC+DC Bandwidth: 200 kHz
DC, AC & AC+DC Current: 1000 µA to 10 A / 10 to 20 A (30 s max)
Current DC Accuracy: ± 0.01 %
Frequency: 10 Hz to 5 MHz
Resistance: 100 Ω to 100 MΩ
Audible Continuity: 1000 Ω signal < 20 Ω < 3.5 V
Diode Test
Diode 0 to 2.6 V < 1 mA + Zener
Diode or LED 0 to 20 V < 11 mA
Capacitance: 1 nF to 10 mF
Temperature Pt100/1000:(-328 to 1472) °F (-200 to 800) °C
Temperature K/J TC:(-40 to 2192) °F (-40 to 1200) °C
OTHER FUNCTIONS
MIN/MAX/PEAK: SURV time/date-stamped MAX/MIN/AVG or
PEAK ± on all functions
Relative Mode (∆Rel): Relative value REF-delta unit or on 3 displays + main measurement
PWM Filter: 4th-order 300 Hz low-pass filter for measuring variable speed drives with asynchronous motors
V/A-Output Clamp Function for Direct Reading: Programmable ratio
Secondary Measurements: 3 measurements + main measurement
SPEC Mode: Display of measurement tolerance: Smin, Smax
GRAPH: Trends of main measurements < 60 s + Zoom + Cursor
Center Zero: Automatic trend bargraph
Memory: 30,000 measurements
GENERAL
Display: Color graphical display (70 x 52) with backlighting on four-line 100,000-count display
Communication: USB optical connector or Bluetooth Class II (optional) & SX-DMM software (included)
Power Supply: Charger or (4) AA batteries or NiMH batteries (included)
Environment:
Storage: (-4 to 158) °F (-20 to 70) °C
Operation: (32 to 104) °F (0 to 40) °C
Dimensions: (7.72 x 3.54 x 1.85) in (196 x 90 x 47.1) mm
Weight: 20.1 oz (570 g)
