Metrel MI 6601 Standard set ຜູ້ທົດສອບທາງການແພດ (200 mAAC, 25 AAC; 250 VDC, 500 VDC)
Continuity / Protective earth resistance
Continuity (R):
0.00 Ω … 19.99 Ω / 0.01 Ω / ±(2 % of reading + 2 D)
20.0 Ω … 99.9 Ω / 0.1 Ω / ±3 % of reading
100.0 Ω … 199.9 Ω / 0.1 Ω / ±5 % of reading
200 Ω … 999 Ω / 1 Ω / Indicative
Insulation Resistance (Riso, Riso-S)
Insulation resistance (250 V, 500 V):
0.00 MΩ … 19.99 MΩ / 0.01 MΩ / ±(3 % of reading + 2 D)
20.0 MΩ … 99.9 MΩ / 0.1 MΩ / ±5 % of reading
100.0 MΩ … 199.9 MΩ / 0.1 MΩ / ±10 % of reading
Output voltage (Um): 0 V … 600 V / 1 V / ±(3 % of reading + 2 D)
Leakage Current (Direct, Differential, Alternative):
0.000 mA … 1.999 mA / 1 µA / ±(3 % of reading + 3 D)
2.00 mA … 19.99 mA / 0.01 mA / ±5 % of reading
Patient Auxiliary Leakage / Touch Leakage:
0.000 mA … 1.999 mA / 1 µA / ±(3 % of reading + 3 D)
2.00 mA … 19.99 mA / 0.01 mA / ±5 % of reading
Power (active):
0 W … 999 W / 1 W / ±(5 % of reading + 5 D)
1.00 kW … 3.70 kW / 10 W / ±5 % of reading
Voltage (U):
0.0 V … 199.9 V / 0.1 V / ±(3 % of reading + 10 D)
200 V … 264 V / 1 V / ±3 % of reading
Mains supply: 110 V / 230 V AC, 50 Hz / 60 Hz
Max. power consumption: 300 VA (without load on test socket)
Measuring category: CAT II / 300 V
Protection classifications: Class I
Display: Colour TFT display, 4.3 inch, 480 x 272 pixels
Degree of protection: IP 65 (case closed), IP 40 (case open)
Communication: USB 2.0, RS-232, Bluetooth, Ethernet
Dimensions (w x d x h): 42 cm x 33 cm x 18 cm
Weight: 8.1 kg

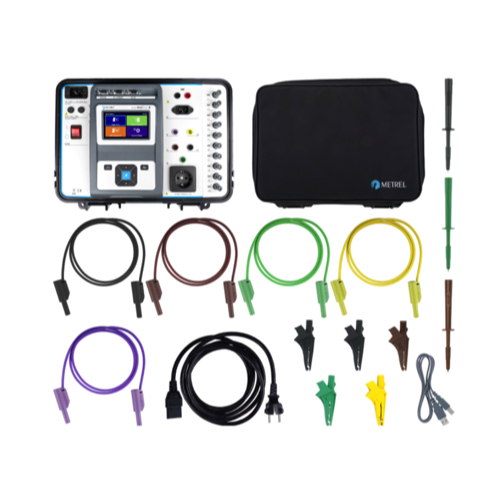

Includes:
• Instrument MI 6601 MediTest
• A 1080 Mains cable
• A 1758 Test lead, black, 1 m
• A 1759 Test lead, brown, 1 m
• A 1760 Test lead, green, 1 m
• A 1761 Test lead, yellow, 1 m
• A 1762 Test lead, violet, 1 m
• A 1014 Test probe, black
• A 1298 Test probe, brown
• A 1062 Test probe, green
• A 1013 Crocodile clip, black, 2pcs
• A 1297 Crocodile clip, brown
• A 1309 Crocodile clip, green
• A 1546 Crocodile clip, yellow
• A 1727 USB cable
• A 1017 Communication cable RS232
• A 1500 Bag for accessories
