Metrel MI 3116 Bifacial set ເຄື່ອງທົດສອບການສນວນໄຟຟ້າ ແລະ ພະລັງງານແສງຕາເວັນ (1500 VDC; 40 ADC; 1500 V)
PHOTOVOLTAIC MEASUREMENTS
Voltage (Measuring range/ Accuracy)
20.0 … 199.9 VDC / ±(1 % of reading + 2 digits)
200 … 1699 VDC / ±1 % of reading
Current (Measuring range/ Accuracy)
0.10 … 9.99 ADC / ±(1 % of reading + 3 digits)
10.00 … 39.99 ADC / ±1 % of reading
Power (Measuring range/ Accuracy)
0.2 … 199.9 W / ±(2 % of reading + 5 digits)
200 … 1999 W / ±2 % of reading
2.00 kW … 19.99 kW / ±2 % of reading
20.0 kW … 48.0 kW / ±2 % of reading
I/U Curve Max Limits: 1500 V / 40 A / 48 kW
Irradiation (A 1834) (Measuring range/ Accuracy)
0 … 999 W/m² / ±(4 % + 5 digits)
1.00 … 1.75 kW/m² / ±4 % of reading
Temperature (A 1833): -10.0 … 85.0 °C / ±5 digits
ELECTRICAL INSTALLATION MEASUREMENTS
Insulation Resistance (Roc-, Roc+) at 250 VDC (Measuring range/ Accuracy)
0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)
20.0 … 199.9 MΩ / ±10 % of reading
Insulation Resistance (Roc-, Roc+) at 500 V, 1000 V, 1500 VDC (Measuring range/ Accuracy)
0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)
20.0 … 199.9 MΩ / ±5 % of reading
200 … 999 MΩ / ±5 % of reading
Insulation Resistance (Roc): 0.00 … 999 MΩ / Calculated Value
Continuity (200 mA):
0.00 … 19.99 Ω / ±(3 % of reading + 3 digits)
20.0 … 199.9 Ω / ±5 % of reading
200 … 1999 Ω / ±10 % of reading
GENERAL DATA
MAIN UNIT
Display: 4.3" Colour TFT LCD with touch screen (480 x 272 pixels)
Power Supply: 14.4 V (4400 mAh) Li-Ion battery, non-removable
Mains Power: 100 V … 240 VAC, 50/60 Hz, 100 W
Memory: microSD card slot (up to 512 GB)
Connectivity RS232, USB, Bluetooth, Wi-Fi: 1 port, DB9 female USB 2.0, standard Type-B v4.2 BR/EDR and BLE specification 802.11 b/g/n (802.11n up to 150 Mbps) (Only for communication with A 1785 - PV Remote WL)
Protection Classification: Reinforced insulation
Degree of Protection: IP 54 (cover closed) / IP 40 (cover opened)
Weight: 6.8 kg
Dimensions (L x H x W): 420 x 180 x 330 mm
REMOTE UNIT
Display: 128 x 64 dots matrix display with backlight
Power Supply: 9 VDC (6 x 1.5 V AA batteries or external adapter)
Weight: 1 kg
Dimensions (L x H x W): 140 x 80 x 230 mm

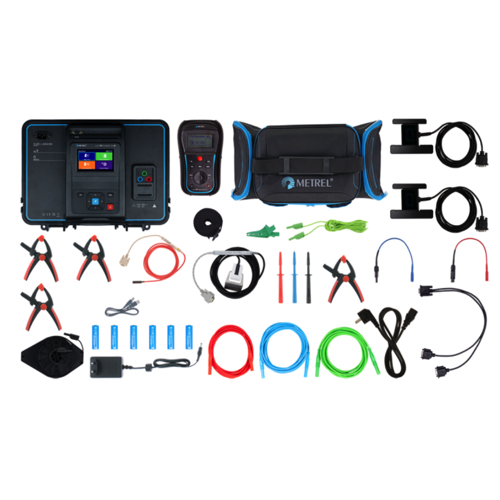

• Instrument MI 3116 PV AnalyserXA
• A 1785 PV Remote WL
• A 1833 PV temperature sensor
• A 1846 PV Reference cell V2
• 2x A 1835 Clamp for attaching accessories
• A 1840 MC4 Test lead, Blue, 1500 V
• A 1841 MC4 Test lead, Red, 1500 V
• A 1790 RED Test lead, Red, 3m, 2.5mm2
• A 1790 BLU Test lead, Blue, 3m, 2.5mm2
• A 1792 Test lead Green, 3m, 0.75mm2
• A 1509 Test lead, Black, 50m, 0.75mm2 – Reel
• A 1012 Test lead, Green, 4m, 0.75mm2
• A 1309 Crocodile clip, Green
• A 1014 Test probe, Black
• A 1015 Test probe, Blue
• A 1016 Test probe, Red
• A 1727 USB cable TypeA/B
• A 1728 Power cable, 2m, 3x0.75mm2
• A 1551 Soft padded carrying bag Size: L
• A 1548 Power supply 0.5A/12V
• A 1791 Carrying strap with tightening buckle
• S 2080 Battery set, Type AA, 2100mAh - 6pcs
• Calibration certificate for MI 3116
• Calibration certificate for A 1785
• User Manual
• SW 1201 Metrel Electrical Safety Manager (MESM)
• A 1846 PV Reference cell V2
• A 1383 Temperature probe with 3 m cable
• A 1847 Communication cable, 0.5m
• A 1835 Clamp for attaching accessories
