Metrel MD 9040 Standard set ເຄື່ອງວັດດິຈິຕອລ (TRMS, 999.9 V; 10.00 A AC/DC)
Range/ Accuracy
TRMS AC Voltage (40 Hz … 20 kHz): 60.00 mV … 999.9 V / From ±(0.5% of reading + 3 digits) to ±(3.0% of reading + 4 digits)
DC Voltage: 60.00 mV … 999.9 V / From ±(0.06% of reading + 2 digits) to ±(0.12% of reading + 2 digits)
DC Current: 600.0 µA … 10.00 A / ±(0.2% of reading + 4 digits)
TRMS AC Current (40 Hz … 1 kHz): 600.0 µA … 10.00 A / From ±(0.6% of reading + 3 digits) to ±(1.0% of reading + 4 digits)
Diode Test:
2.000 V / ±(1.0% of reading + 1 digit)
Open-circuit voltage < 3.5 VDC, Test current 0.4 mA
Resistance: 600.0 Ω … 60.00 MΩ / From ±(0.1% of reading + 3 digits) to ±(1.5% of reading + 5 digits)
Mains Frequency: 15.00 Hz … 50.00 kHz / ±(0.04% of reading + 4 digits)
Frequency of Digital Equipment: 5.00 Hz … 1.000 MHz / ±(0.004% of reading + 4 digits)
Capacitance: 60.00 nF … 25.00 mF / From ±(0.8% of reading + 3 digits) to ±(6.5% of reading + 5 digits)
Power Supply: 9 V battery (NEDA1604G, JIS006P, or IEC6F22)
Overvoltage Category: CAT IV / 1000 V
Dimensions: 208 × 103 × 64.5 mm
Weight: 635 g

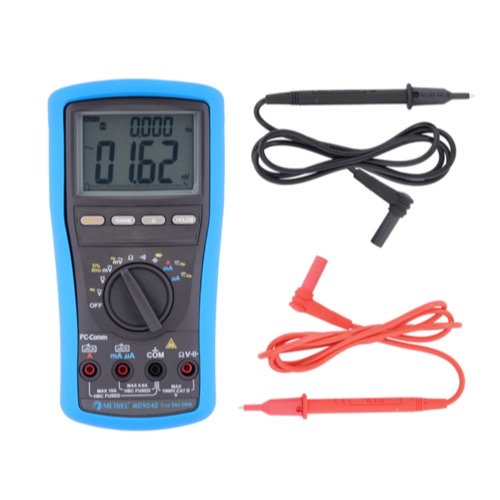

• Multimeter MD 9040 with rubber holster
• Test lead with probe, 2 pcs
• 9 V battery
• Instruction manual
