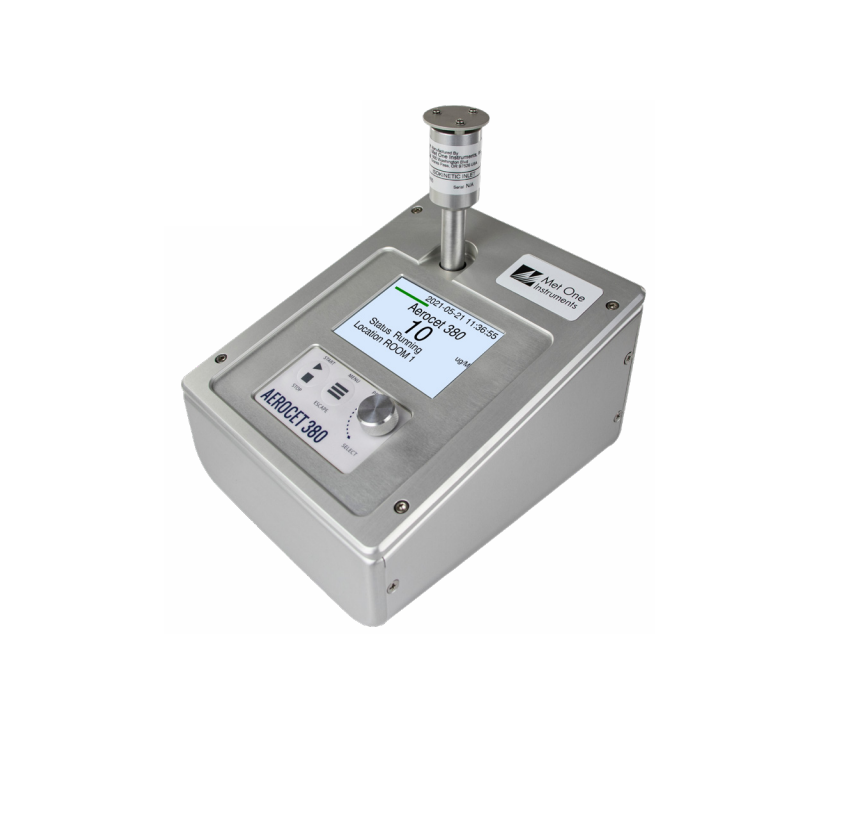

METONE Aerocet 380 ຕິດຕາມກວດກາຝຸ່ນ (0 ~100 mg/m3)
Specifications
Measurement Principles: Particulate concentration by forward light scatter laser Nephelometer.
Measurement Range: 0 to 100 mg/m3 (0 to 100,000 µg/m3 )
Measurement Sensitivity: 0.001 mg/m3
Nephelometer Accuracy: ± 5% traceable standard with 0.6 µm PSL
Particle Size Sensitivity: 0.1 to 100 µm. Optimal sensitivity 0.5 to 10 µm particles
Long-term Stability: 5% with clean optics
Laser Type: Diode Laser, 5 mW, 670 nm; Visible red
Display: 3.5” color LCD
Flow Rate: 2.0 liters/ minute ± 0.1 LPM. Actual volumetric flow
Pump Type: Brushless Diaphragm (20,000 hour)
Power: Input: 14.8 V Li Battery, Output: 16.8 VDC @ 1.8 A
Power Consumption: 5.25 W
Digital I/O: RS-485, USB-C, WiFi
Purge Filter: 0.01 µm (99.99% in air)
Pump Filter: 5.0 micron
Serial Communication: ASCII, MODBUS
Internal Data Storage: >15,000 records
Operating Temperature: 0° C to +40° C
Ambient Humidity Range: 0 to 90% RH, non-condensing
Unit Weight: 2.3 kg (5.1 lbs)
Unit Dimensions: 21.6 cm height, 15.2 cm width, 21.0 cm depth (8.5” x 6.0” x 8.25”)
Available Cut Points: PM1 , PM2.5, or PM10 separators optional
Supplied Accessories
- Li-Ion Smart Charge w/ Power Cord
- TSP Sampling Cap
- Sample Tube
- USB-C Comm Cable
- RS-485 Comm Cable
- Operation Manual
- NIST Certificate of Calibration
Optional Accessories
- PM1 Sharp Cut Cyclone (SCC 111)
- PM2.5 Sharp Cut Cyclone (SCC 112)
- PM10 Sharp Cut Cyclone (SCC 110)
