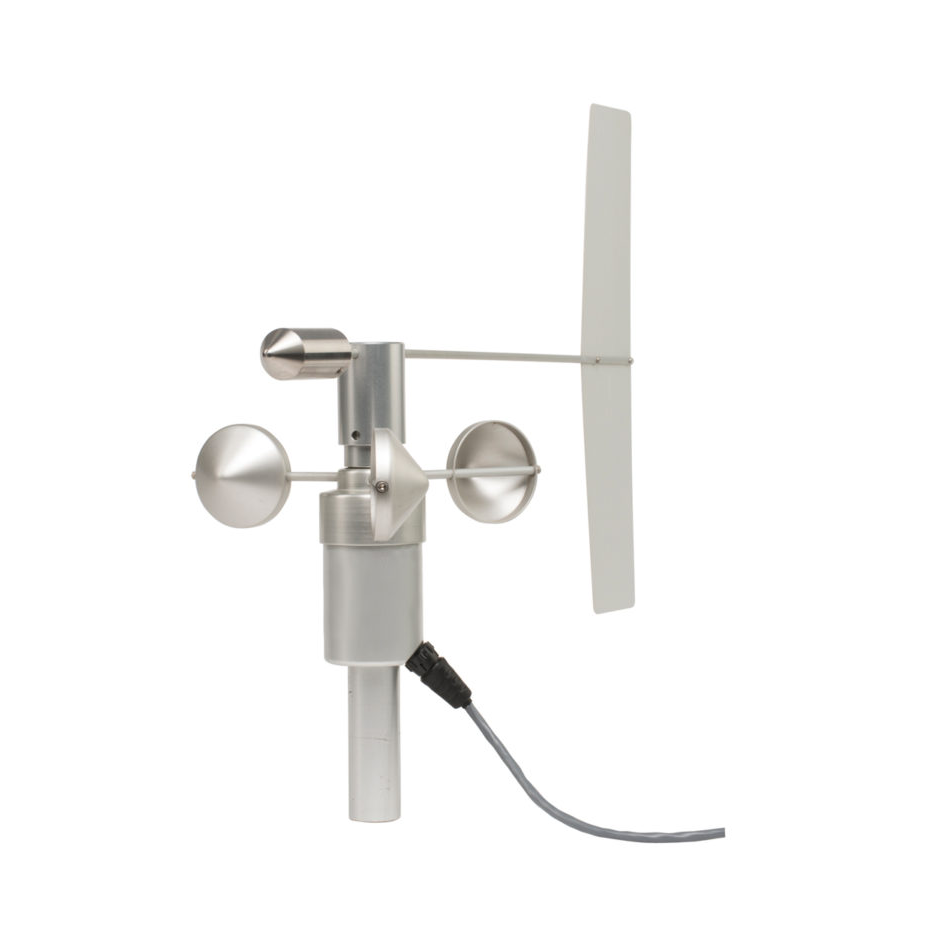

METONE 034E ເຊັນເຊີລົມ (0~167mph; 0~360°; 0~356°)
Wind Speed
Range: 0~167mph (0~75m/s)
Starting Threshold: 0.9mph (0.4m/s)
Accuracy < 22.7 mph: 0.25mph (0.1m/s)
Accuracy > 22.7 mph: ±1.0% of true
Wind Direction
Range:
Mechanical: 0~360°
Electrical: 0~356°
Starting Threshold: 0.9mph (0.4m/s)
Accuracy: ±3°
Damping Ratio: 0.25 standard (0.4 to 0.6 optional)
Resolution: < 0.5°
Temperature Range: Minimal icing conditions: -30~70°C (-22~158°F)
Output Signal
Wind Speed: Pulsed contact closure
Wind Direction: Potentiometer output (0~10K ohms)
Physical Characteristics
Sensor Weight: 1lb 12.5oz (0.81kg)
Finish: Clear anodized aluminum
Cable & Mounting
P/N 3013: Cable Assembly; specify length in feet or meters
Mounting: PN 2954 Mounting & Alignment Adapter
