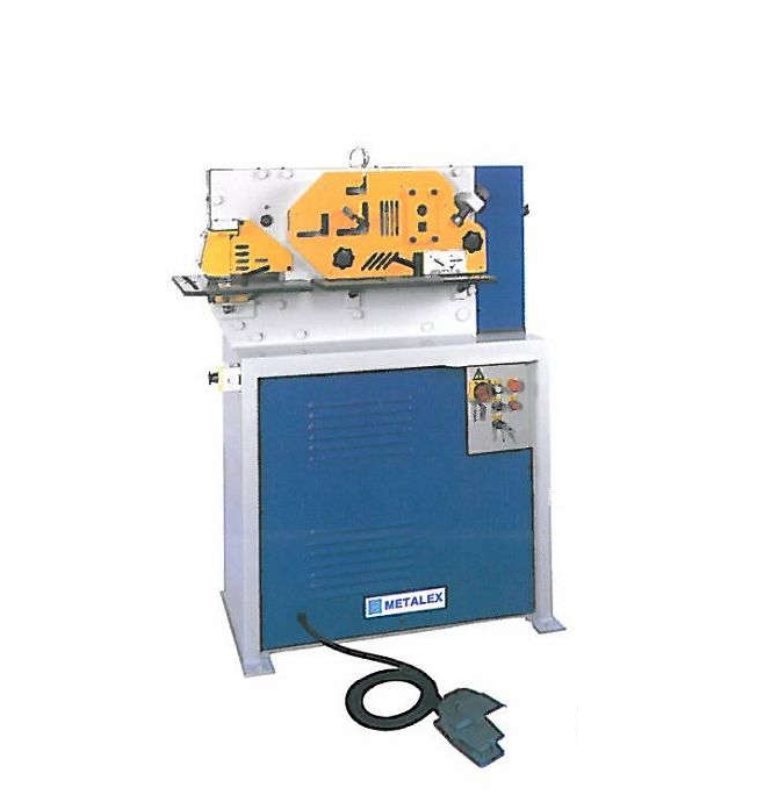

METALEX HIW-40 ຊ່າງເຫລັກໄຮໂດລິກ
Punching
- Rated capacity: 40 T
- Maximum capacity: 20 x 15 mm
- Diameterxthickness: 38 x 8 mm
- Stroke length: 32 mm
- Speed - 20 mm travel: 20 cycles/min
- Throat size (standard): 175 mm
- Deep throat: -
- Largest hole (optional): 57 mm
- Max. Section flange punch: -
- Working height: 1075 mm
Shearing
- Flat Bar - max. thickness: 200 x 13 mm
- Flat bar - max. width: 350 x 6 mm
- Angle Iron trim: 80 x 10 mm
- Working height: 1075 mm
Angle Cutting
- 90° cut: 80 x 8 mm
- 45° Mitre cut: 50 x 6 mm
- Working height: 1210 mm
Section Cutting
- Round / Square bar: 30/25 mm
- Channel / Beam (optional): 76 x 38 mm
- Tee (optional): 38 x 6 mm
- Working height: 1140 mm
Notching
- Material thickness: -
- Width: -
- Depth vee (optional) / Rectangular: -
- Angle flange: -
- Working height: -
Techinical
- Motor: 5 Hp
- Net weight / Gross weight: 570/640 kg
- Machine dimension: 106 x 55 x 148 cm
- Packing dimension: 122 x 64 x 169 cm
