TS 254 (600668000) Table Saw
Dimensions: 740 x 750 x 355 mm / 2.5 x 2.5 x 1.2 ft
Max. support surface: 970 x 995 mm / 38 3/16 x 39 3/16 "
Working height: 850 / 355 mm // 33 1/2 / 14 "
Cutting height: 0 - 87 mm // 0 - 3 3/8 "
Maximum cutting height 90/45°: 87 / 54 mm // 3 7/16 / 2 "
Maximum cutting width at parallel guide/rip fence: 630 mm / 24 3/4 "
Maximum material width at mitre fence: 200 mm / 7 7/8 "
No-load speed: 4200 rpm
Cutting speed: 56 m/s / 184 ft/s
Saw blade: 254 x 30 mm / 10 x 1.181 "
Saw blade swivel range: -1.5 - 46.5 °
Mains voltage: 220 - 240 V
Rated input power S1 100%: 1700 W
Rated input power S6 20%: 2000 W
Weight: 33.4 kg / 73.6 lbs kg
Cable length: 3.1 m / 10 ft
Noise emission
Sound pressure level: 99 dB(A)
Sound power level (LwA): 112 dB(A)
Uncertainty of measurement K: 3 dB(A)
ASR 25 L SC (602024000) All-purpose Vacuum Cleaner
Air output max.: 4380 l/min / 157 cfm
Vacuum: 248 hPa (mbar) / 3.6 psi
Filter surface: 8600 cm² / 1333 sq.inch
Input power max.: 1400 W
Container volume: 25 l / 7 gal
Suction hose Ø: 35 mm / 1 3/8 "
Hose length: 3.2 m / 10 ft m
Weight: 11 kg / 24.3 lbs kg
Cable length: 8 m / 26 ft m
Delivery

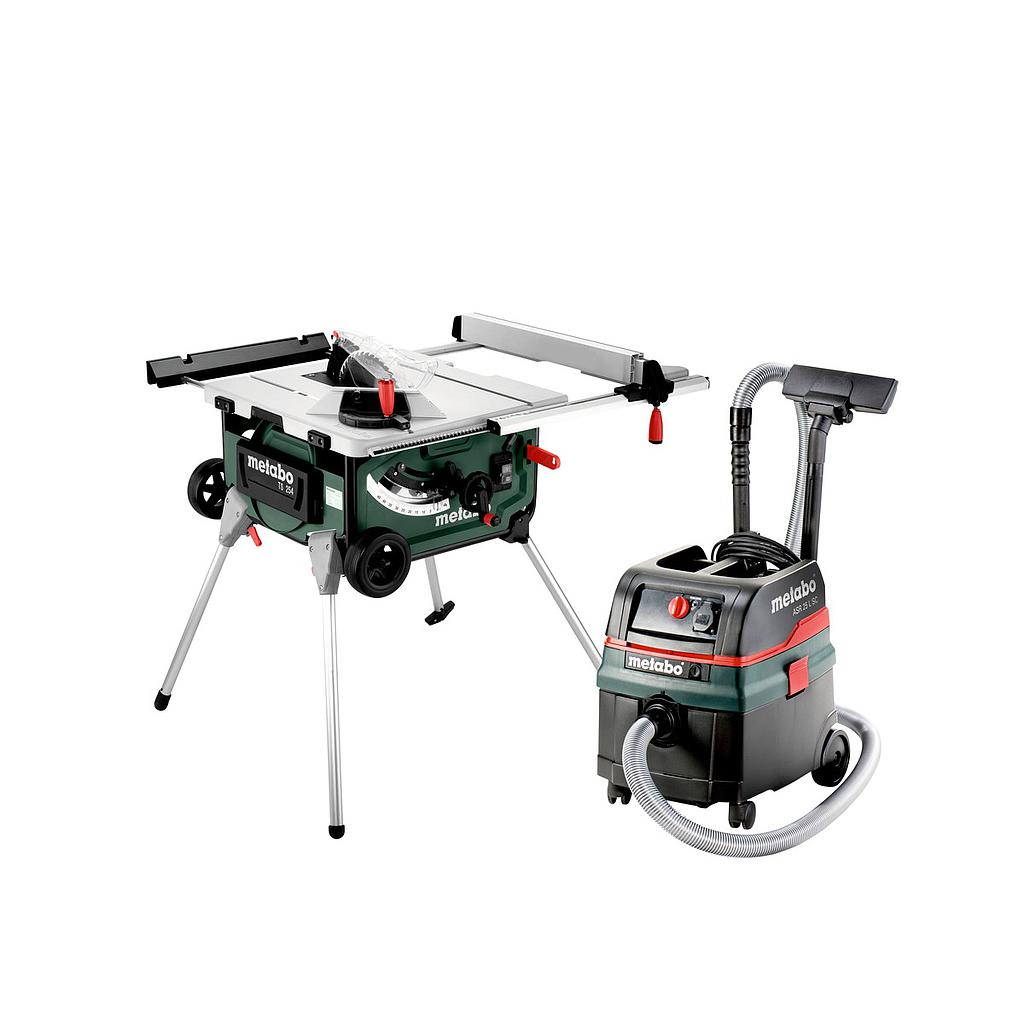

Table saw TS 254 with stand, carbide saw blade with alternately bevel-ground tips (40 teeth), hard rubber tyres, parallel guide, mitre fence, table length extension, table width extension (right), saw blade storage, chip and dust extraction unit, rubber cable (3 m), push stick.
All-purpose vacuum cleaner ASR 25 L SC with suction hose (Ø 35 mm / 3.2 m), handle adapter, 2 plastic suction tubes, 2 polyester filter cassettes (class M), fleece filter bags, crevice nozzle, universal nozzle
Datasheet
TS 254 (600668000)
Features
System solution for clean mobile sawing
Table Saw TS 254: lightest mobile table saw with stand and trolley function. Setup in only 15 seconds
All-purpose Vacuum Cleaner ASR 25 L SC: vacuum cleaner for liquids and dry solids with commercial registration for dust class L. With semi-automatic SelfClean filter cleaning during breaks
