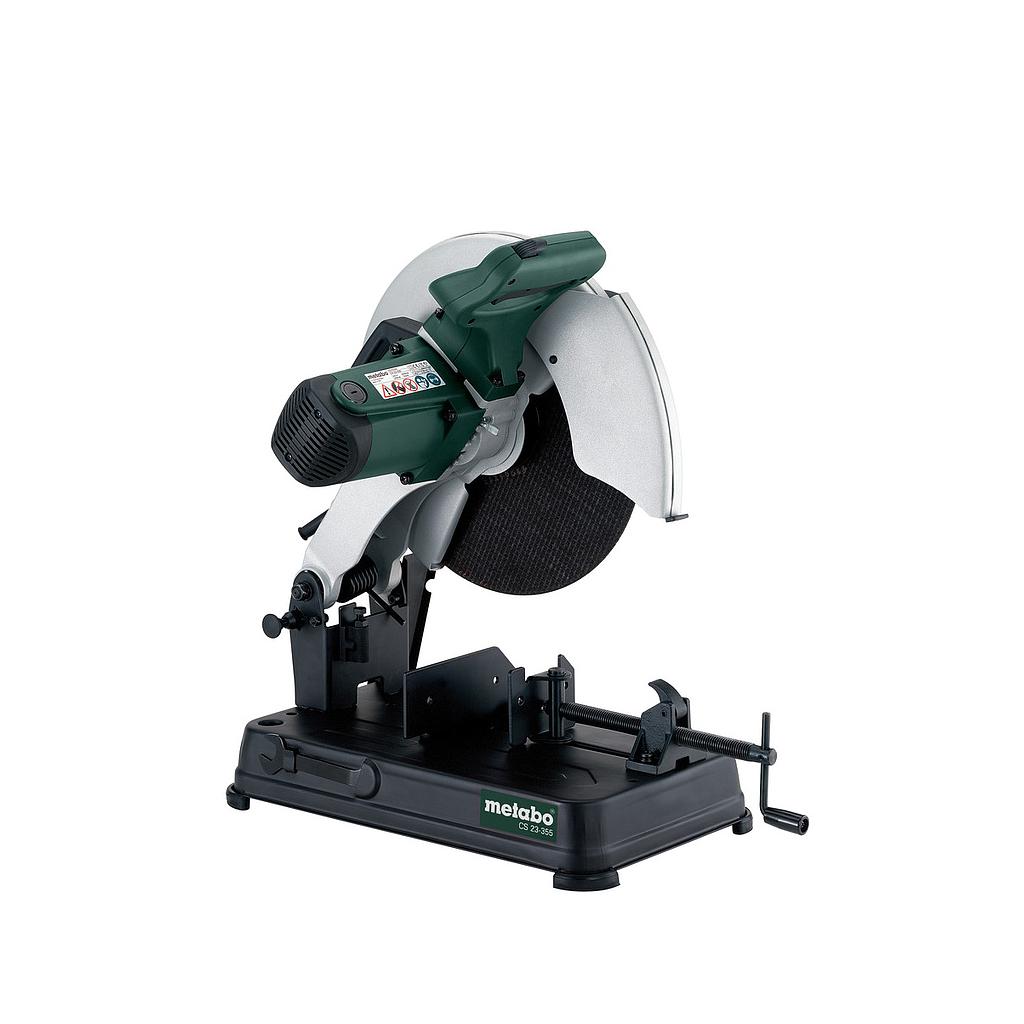

METABO CS 23-355 ຕັດໂລຫະ (220-240 V / 50-60 Hz)

Grinding wheels (Ø x bore): 355 x 25.4 mm / 14 x 1 "

Torque: 18 Nm / 160 in-lbs

No-load speed: 4000 rpm

Rated input power: 2300 W

Cutting capacity steel bars: 65 mm / 2 1/2 "

Cutting capacity pipes: 125 mm / 5 "

Cutting capacity steel sections: 115 x 130 mm / 4 1/2 x 5 1/8 "

Maximum opening of vice jaws: 238 mm / 9 3/8 "

Dimensions of the base plate: 468 x 282 mm / 18 7/16 x 11 3/32 "

Transport height: 400 mm / 15 3/4 "

Weight: 16.9 kg / 37 lbs

Cable length: 2.7 m / 9 ft

Noise emission

Sound pressure level: 91 dB(A)

Sound power level (LwA): 104 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Open-ended ring spanner

Inner support flange

Flange nut

Datasheet

Features

For single phase alternating current

Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.

Motor and gear with ball bearing for high loads

Spindle lock for easy disc change

Quick clamping device with variable mitre conversion from -15° up to 45°

Easy to transport due to built-in handle and locking device

High safety thanks to swivelling cutting guard

Storage for double-ended wrench at the machine table

Safe working thanks to adjustable spark guide plate

Adjustable cutting depth limiter
