No-load speed: 12500 rpm
Rated input power: 1550 W
Output power: 840 W
Type of edges: Chamfer
Max. chamfer width 45°: 14 mm / 9/16 "
Max. chamfer height at 45°: 10 mm / 3/8 "
Grading of cutting depth setting: 0.1 mm / 0.00394 "
Curves smallest outer Ø: 75 mm / 2 15/16 "
Weight (without power cable): 5.1 kg / 11.2 lbs
Cable length: 4 m / 157 1/2 "
Noise emission
Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
3 x Carbide indexable inserts Universal
2 x Screwdriver SW 4 with T-handle
2 x Open-jawed spanner SW 10
2 x Side handle
2 x Metal carry case
2 x Stop roller
2 x Screwdriver Torx 15
Accessories
OTHER ACCESSORIES
Accessories for bevelling tools
Datasheet
Features

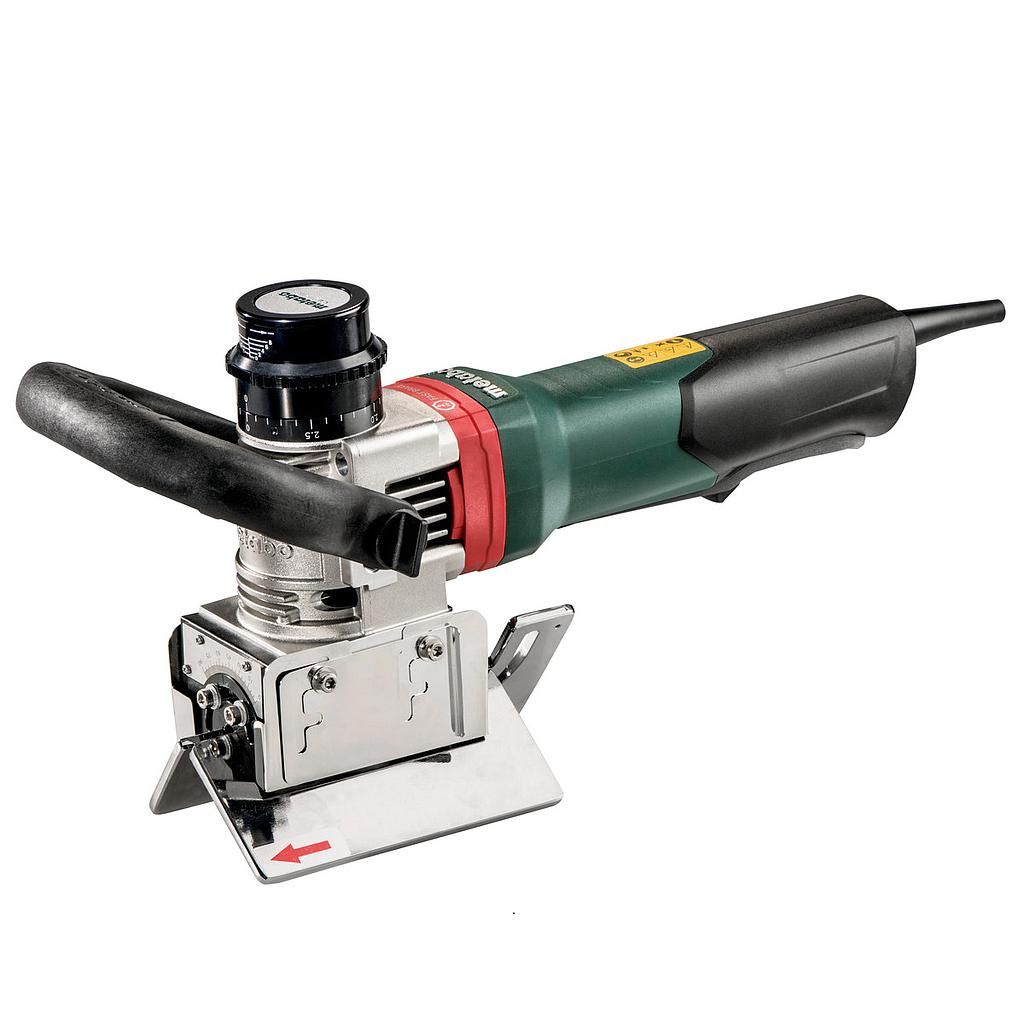

Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation with maximum user safety by virtue of a dead-man switch and brake system
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Precise setting of the chamfer angle directly via the guide plates
Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Front handle for safe and uniform guidance, adjustable without the need for tools
Metabo Marathon-motor with patented dust protection for long service life
Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
Patented, mechanical brake system stops the router bit within 2 seconds after switching off
Electronic overload protection, soft start and restart protection
Protection of the user by virtue of lateral plates for conveying the chips
