Suction rate: 510 l/min / 135 gal/h
Filling capacity: 395 l/min / 14 cfm
Effective delivery volume (at 80% max. pressure): 360 l/min / 12.7 cfm
Maximum pressure: 11 bar / 160 psi
Rated input power: 3 kW / 4 HP
Maximum speed: 1400 rpm
Tank capacity: 200 l / 52.8 gal
Sound pressure level (LpA): 87 dB(A)
Sound power level (LwA): 96 dB(A)
Dimensions: 1430 x 550 x 1010 mm / 4.7 x 1.8 x 3.3 ft
Weight: 136 kg / 300 lbs
Cable length: 1.5 m / 5 ft
Noise emission
Sound pressure level: 87 dB(A)
Sound power level (LwA): 96 dB(A)
Delivery
3 Universal couplings
Accessories
COMPRESSED AIR
Accessories for compressors, Compressed air preparation, Accessories for compressed air tools
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

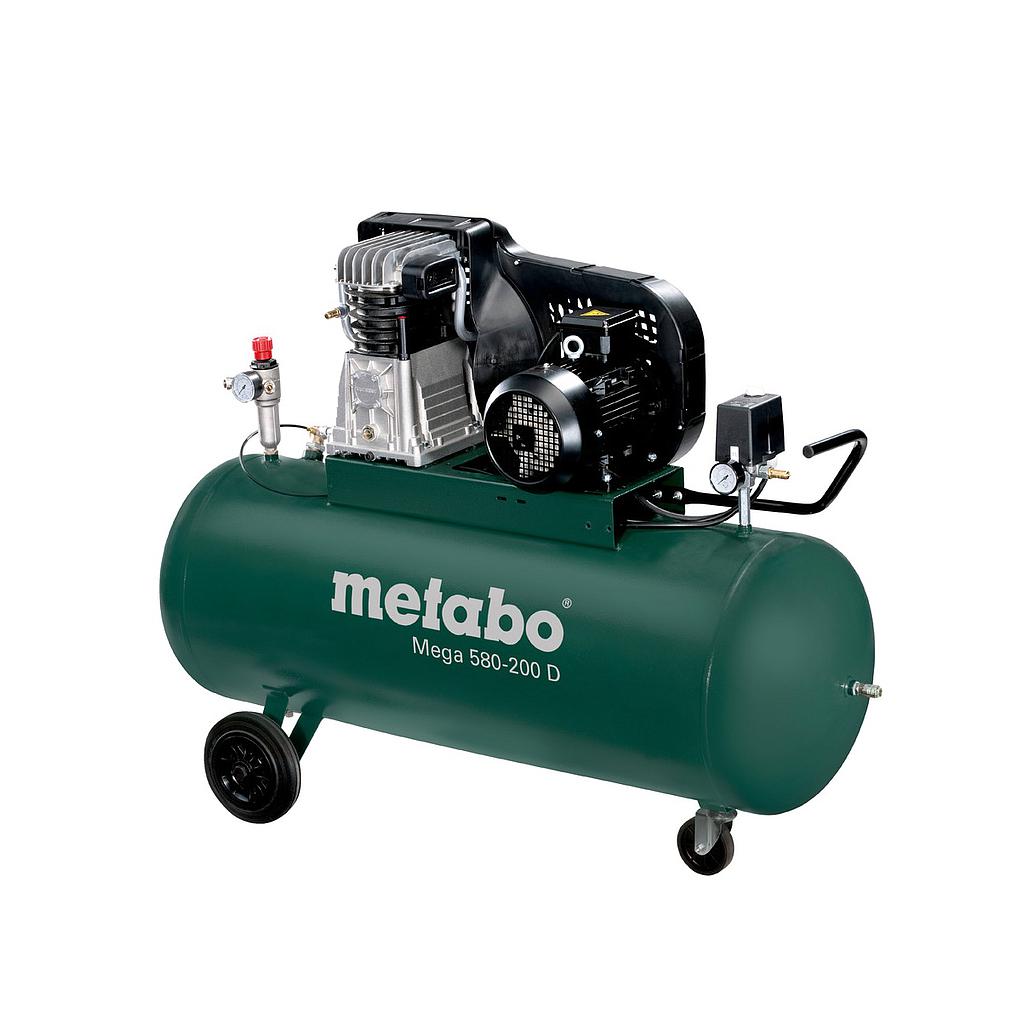

More powerful and robust V-belt compressor for demanding use
Belt drive for low speeds and a particularly quiet operation
Two-stage compression for particularly high performance and long service life
For three-phase current
Working pressure can be regulated according to application by means of a filter pressure reducer with manometer
Convenient pressure switch for good cold starting, complete with relief valve
Additional manometer for displaying the tank pressure
Overload protection: protects the motor from overheating
Oil-lubricated 2-cylinder piston compressors for high air supply volume
Rubberised, stable wheels and pull handle for mobile use
10 year tank warranty against rust
