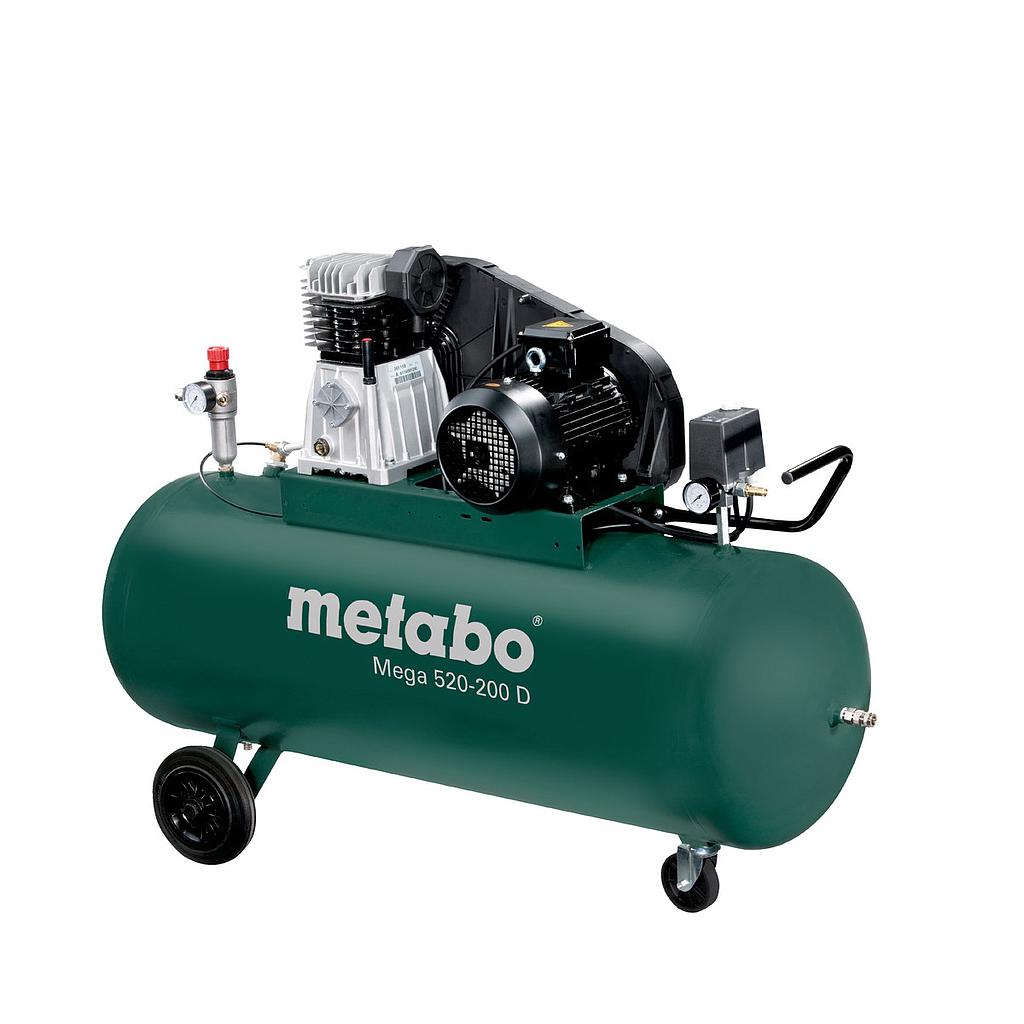

METABO MEGA 520-200 D ເຄື່ອງອັດຂະໜາດໃຫຍ່ (380-415 V / 50 Hz)

Suction rate: 490 l/min / 129 gal/h

Filling capacity: 370 l/min / 13.1 cfm

Effective delivery volume (at 80% max. pressure): 320 l/min / 11.3 cfm

Maximum pressure: 10 bar / 145 psi

Rated input power: 3 kW / 4 HP

Maximum speed: 1300 rpm

Tank capacity: 200 l / 52.8 gal

Sound pressure level (LpA): 89 dB(A)

Sound power level (LwA): 96 dB(A)

Dimensions: 1500 x 450 x 960 mm / 5 x 1.5 x 3.2 ft

Weight: 131 kg / 289 lbs

Cable length: 1.5 m / 5 ft

Noise emission

Sound pressure level: 89 dB(A)

Sound power level (LwA): 96 dB(A)

Delivery

3 x Universal couplings

Accessories

COMPRESSED AIR

Accessories for compressors, Compressed air preparation, Accessories for compressed air tools

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

More powerful and robust V-belt compressor for demanding use

Belt drive for low speeds and a particularly quiet operation

For three-phase current

Working pressure can be regulated according to application by means of a filter pressure reducer with manometer

Convenient pressure switch for good cold starting, complete with relief valve

Additional manometer for displaying the tank pressure

Overload protection: protects the motor from overheating

Oil-lubricated 2-cylinder piston compressors for high air supply volume

Rubberised, stable wheels and pull handle for mobile use

10 year tank warranty against rust
