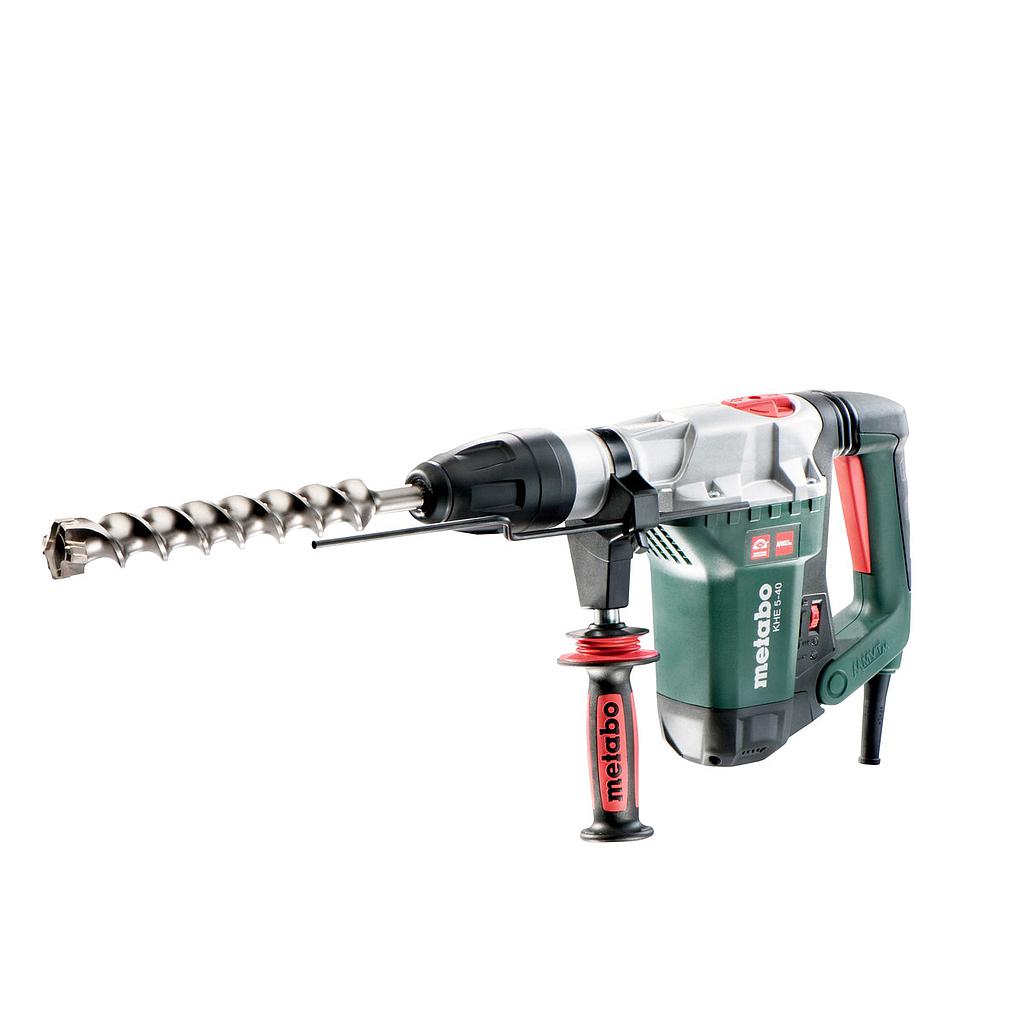

METABO KHE 5-40 ຄ້ອນຜະສົມຜະສານ (200-350 rpm)

Max. single blow energy (EPTA): 7.5 J

Maximum impact rate: 3200 bpm

Rated input power: 1010 W

Ø Drill concrete with hammer drills: 40 mm / 1 9/16 "

Ø Drill masonry with core bits: 90 mm / 3 9/16 "

No-load speed: 200 - 350 rpm

Bit retainer: SDS-max

Collar diameter: 60 mm / 2 3/8 "

Weight (without power cable): 6.2 kg / 13.7 lbs

Cable length: 4 m / 13 ft

Vibration

Hammer drilling concrete: 13.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Chiseling: 11.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 95 dB(A)

Sound power level (LwA): 106 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Metabo VibraTech (MVT) side handle

Duster

Plastic carry case

Drilling depth guide

Lubricant for tool shank end

Accessories

DRILLING/CHISELLING

SDS-max drill/chisel bits, Drill bit assortments, Core bits, Router bits, Further accessories for rotary and chipping hammers

ACCESSORY SETS/SPECIALS

Chisel bit sets

OTHER ACCESSORIES

Occupational safety

Datasheet

Features

Combination hammer with 2 functions: hammer drilling and chiselling

Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

Thumbwheel for preselection of the speed and impact rate

Electronic soft start for precise spot-drilling

Optimum heat dissipation and low weight thanks to die cast magnesium gear housing

Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly

Wear Indication for Carbon Brush
