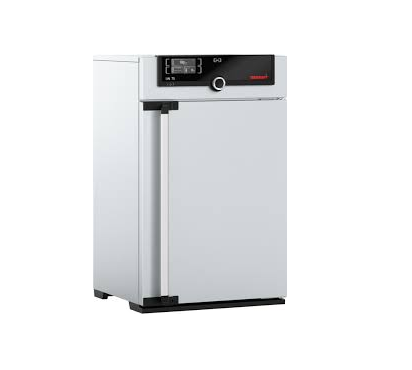

MEMMERT UN55m ເຕົາອົບທົ່ວໄປ

- Volume: 449 liters

- Interior dimensions: 1040 x 720 x depth 600 mm

- Exterior dimensions: 1124 x 1274 x 784 mm

- Stainless steel grids (standard): 2

- Max. number of grids: 8

- Max. loading per grid: 30 kg

- Max. loading of chamber: 300 kg

- Working temperature range: min. 10 above ambient temperature to 800C

- Setting accuracy: 0.10C

- 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

- Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

- ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display

- Timer: digital backwards counter with target time setting, adjustable from 1 minute to 99 days

- Function setpointWAIT: the process time dose not start until the set temperature is reached

- Calibration: three freely selectable temperature values

- Adjustable parameters: temperature (Celsius or Fahrenheit), programme time, time zones

- Forced air circulation in working chamber, fixed value 100%

- Programme stored in case of power failure

- Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

- Autodiagnostic system: for fault analysis

- Door: fully insulated stainless steel door with 2-point locking, inner glass door, two leaves

- Structured stainless steel housing, scratch-resistant, robust and durable; rear of zinc-plated steel

- Internal data logger with a storage capacity of at least 10 years

- Voltage: 230 V, 50/60 Hz

- Electrical load: approx. 1800 W

- Ambient temperature: 5 – 400C

- Humidity: max. 80% rh, non-condensing

- Installation: mounted on clockable castors

Accessories:

+ Works calibration certificate at 370C (Memmert supply)

+ Stainless steel grid, 2 pcs

+ Manual
