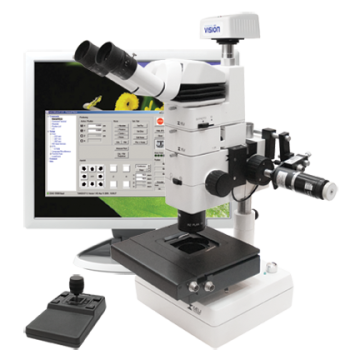

RZM Features:
Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
Keyboard and Mouse
Motorized stage for metallurgical microscope, 2 or 3 levels, 75x50 mm
Automated focus control (Z-movement)
Mechanical stage and focus control
Abbe optical scheme
Total magnification (of a set of eyepieces and objectives) from 3.75x to 300x
Main Plan Achromat objectives: 0.5x, 0.75x, 1.0x, 1.5x, 2.0x
Ultra widefield objectives with diopter adjustment: 10x, 15x, 20x
Standard binocular head with 45° inclination; ergonomic binocular head with adjustable inclination of 10–50°
Photo and video documentation
Meiji Techno RZM has the following items:
RZ stereo microscope body (RZ-B)
Binocular ERGO head (MA749)
Video port (MA751)
RZT microscope stand (RZT)
Eyepiece block for Siedentopf style head
UWF 10x, F.N. 20 eyepieces (2 × MA730)
Rubberized Eyepiece eyeshields (included)
Coaxial illuminator (COX)
1/4 wave plate for coaxial illuminator (MA762)
Power Supply for Illuminator (MA651)
Stage Components:
Motorized scanning stage 120x100 mm
Adapter column for stage
MA motorized focus drive
Adapter plate for focus drive (two plates, steel pin, screw)
Retaining ring for focus drive
Spring-loaded coupling with two screws
Tango 3-axis controller and 3-axis joystick
Countersunk screw M3x6 DIN 7991 for focus drive (2)
Allen screw M3x8 DIN 912 for stage (4)
Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)
CPU and Monitor Components:
High power PC with monitor and keyboard
Mouse with mouse pad
Microscope dust protection
Object micrometer
3-axis motor cable
Power cable (specify 110V or 220V)
Surge protector
Microscope Objectives:
CMO objective 1.0x, working distance 76mm (MA742)
Microscope Camera:
Optical C”-mount 0.5x (MA151/35/03)
Digital camera CAM V3200
Camera power supply
Camera power extension cord
Camera USB cable
Movement Resolution:
Travel speed maximum 25mm/s
Repeatability < 1 um
Accuracy ± 3 um
