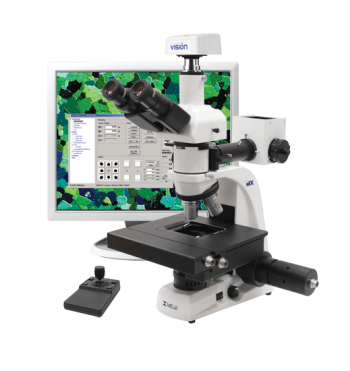

MT8530M Features:
Motorized stage for metallurgical microscope, 2 or 3 levels, 75x30 mm
Automated focus control (Z-movement)
Mechanical stage and focus control
Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
Keyboard and Mouse
ICOS™(Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics
Super widefield eyepieces 10x (for spectacle wearers), 20 mm linear field
Revolving quadruple nosepiece for 4 objectives
Reflexless Planachromat Epi brightfield/darkfield objectives: BD 5x, BD 10x, BD 20x, BD 50x
Reflected Koehler illuminator with halogen light source (12 V, 50 W), field iris, aperture diaphragm and slots for filters, power supply with automatic voltage detection and brightness adjustment (stationary)
Transmitted Koehler illuminator with halogen light source (6V, 30W), built-in power supply with automatic voltage detection and brightness adjustment
Integrated digital video cameras for photo and video recording
Research methods include reflected and transmitted light, brightfield, darkfield and polarization
High Power PC system included for Photo and video documentation
Meiji Techno MT8530M has the following items:
Microscope Components:
MT8530L microscope stand
Trinocular head with photo port
Eyepiece block for Siedentopf style head
SWH 10x ,F.N. 22 mm eyepiece (2)
Rubberized Eyepiece eyeshields (2)
Condenser with iris diaphragm, dovetail mount for MT8530 microscope
Kohler vertical illuminator with infinity tube lens, focal length 200mm, 12V, 50W
Power supply for Kohler vertical illuminator
Blue filter
Green filter
Polarization filter
Neutral density filter
Stage Components:
Motorized 3-level stage
MA motorized focus drive
Adapter plate for focus drive (two plates, steel pin, screw)
Retaining ring for focus drive
Spring-loaded coupling with two screws
Tango 3-axis controller and 3-axis joystick
Countersunk screw M3x6 DIN 7991 for focus drive (2)
Allen screw M3x8 DIN 912 for stage (4)
Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)
CPU and Monitor Components:
High power PC with monitor and keyboard
Mouse with mouse pad
Microscope dust protection
Object micrometer
3-axis motor cable
Power cable (specify 110V or 220V)
Surge protector
Microscope Objectives:
Plan Epi Objective BD 5x/0.10
Plan Epi Objective BD 10x/0.25
Plan Epi Objective BD 20x/0.40
Plan Epi Objective BD 50x/0.75
Microscope Camera:
Optical C”-mount 0.5x
Digital camera CAM V3200
Camera power supply
Camera power extension cord
Camera USB cable
