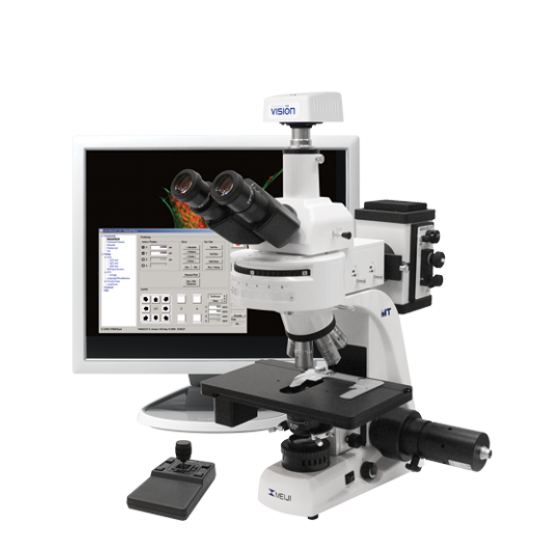

MT6300CLM Features:
Motorized stage for biological microscope, 2 or 3 levels, 75x30 mm
Automated focus control (Z-movement)
Automated Mechanical stage control for 1 slide scanning (X-Y movement)
Vision CAM 3200 - USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
PC/Monitor, Keyboard and Mouse Package - CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
ICOS™ (Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics
Super widefield high eyepoint eyepieces 10x, F.N. 22 (standard)
Ergonomic revolving nosepiece for 5 objectives to change magnification
New advanced Plan Semi Apo infinity corrected objectives for fluorescence methods
Reflexless Semi Apo F10x/0.40, F20x/0.65, F40x/0.80, F100x/1.25 objectives
Fluorescence module: fluorescence reflected light illuminator with a mount for six fluorescent filter sets
Comfortable Siedentopf Viewing Heads
Six Position Fluorescence Module with three Chroma Fluorochromes included:
CHROMA - 19002 - AT-GFP/FITC - Basic Blue (optional)
CHROMA - 19004 - AT-TRITC/Cy3 - Basic Green (optional)
CHROMA - 3900 - AT-DAPI/Hoechst/AlexaFlour - Basic UV (optional)
MA898 Empty filter cube available as an option to fit in the additional 3 empty filter cube spots for specialized Chroma filters
Lamphouse for CoolLED lamp
Koehler illumination reflected CoolLED lamp and 6 V, 30 W halogen transmitted light illuminator
Abbe condenser
Research methods include fluorescence, brightfield
Camera for Photo and video documentation
Brightfield and Epi-Fluorescence modes
LED Transmitted Koehler + CoolLed Epi Module
LED products are more sustainable and energy efficient than conventional illuminators
Mercury-free
Energy Efficient: 80% less power
Long lifetime (25,000 operating hours)
No Bulb replacements
Works with everyday fluorophores/stains
Affordable through lab consumables budget
Broad spectrum - covers UV (DAPI) to Red region (Cy5)
Specify for existing single and multi-band filter sets – no need to buy new filters
Instant on/off - No shutters required, no warm up or cool down
Stable & repeatable – reliable and consistent results
Precise intensity control in 1% steps (0-100%) – no ND filters required
Excellent uniformity over field of view – fixed and stable, no alignment necessary
Meiji Techno MT6300CLM has the following items:
Microscope Components:
MT6300L microscope stand
Trinocular head with photo port
Eyepiece block for Siedentopf style head
SWH 10x, F.N. 22 mm eyepiece (2)
Rubberized Eyepiece eyeshields (2)
Condenser, Numerical Aperture 0.9/1.25
Fluorescence Block with filters (MT-FL)
Lamp housing for fluorescence module (CoolLED)
Power supply for fluorescence module (MT-PWJ)
Countersunk screw M3x6 DIN 7991 for focus drive (2)
Allen screw M3x8 DIN 912 for stage (4)
Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)
Stage Components:
Motorized stage for 1 slide
MA motorized focus drive
Adapter plate for focus drive (two plates, steel pin, screw)
Retaining ring for focus drive
Spring-loaded coupling with two screws
Tango 3-axis controller and 3-axis joystick
CPU and Monitor Components:
High power PC with monitor and keyboard
Mouse with mouse pad
Microscope dust protection
Object micrometer
3-axis motor cable
Power cable (specify 110V or 220V)
Surge protector
Microscope Objectives:
Objective Plan Semi Apo F10x/0.40
Objective Plan Semi Apo F20x/0.65
Objective Plan Semi Apo F40x/0.80
Objective Plan Semi Apo F100x/1.25
Microscope Camera:
Optical C”-mount 0.5x
Digital camera CAM V3200
Camera power supply
Camera power extension cord
Camera USB cable
Movement Resolution:
Travel speed maximum 120 mm/s
Repeatability < 5 µm
Accuracy ± 20 µm
