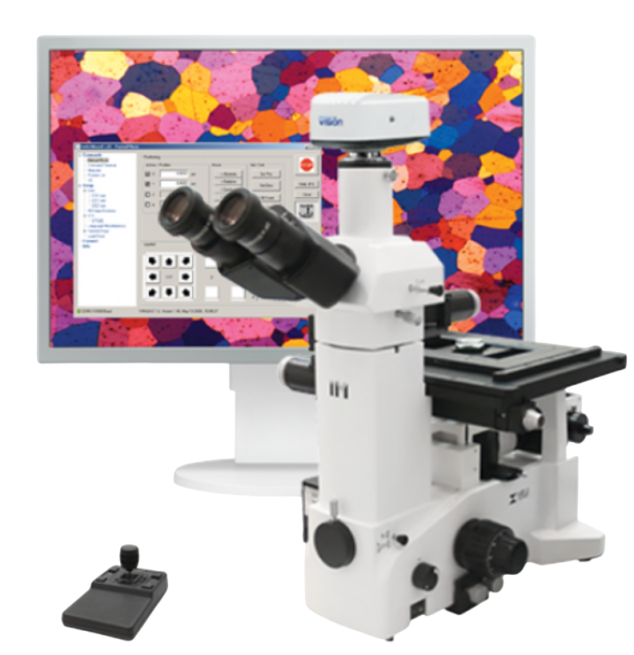

IM7200M
Motorized scanning stage for metallurgical microscope, 3 levels
Stage x-y movement: 120 x 100 mm (4.7 inches x 3.9 inches)
Automated focus control (Z-movement)
Mechanical stage and focus control
Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
ICOS™(Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics
Super widefield eyepieces 10x (for spectacle wearers), 20 mm linear field
Siedentopf type binocular head with photo and video output
Revolving quintuple nosepiece for 5 objectives tilting to the left
Reflexless Objective Planachromat: E5x, E10x, E20x, E50x, and E100x (optional)
Vertical Koehler illuminator with halogen light source (6V, 30W)
Power supply with automatic voltage detection and brightness adjustment
Varied adapters for CCD/CMOS video cameras, digital cameras and 35 mm-film cameras for photo and video documentation
Research methods include reflected light, brightfield, and polarization
Photo/video output in the front part of the base
Photo and video documentation system included
Meiji Techno IM7200M has the following items:
Microscope Components
IM7200 microscope stand
Trinocular head with photo port
Eyepiece block for Siedentopf style head
SWH 10x, F.N. 22mm eyepiece (2)
Rubberized Eyepiece eyeshields (2)
Kohler vertical illuminator with halogen light source (6V, 30W)
Blue filter
Green filter
Polarization filter
Neutral density filter
Stage Components
Motorized scanning stage 120x100 mm
MA motorized focus drive
Adapter plate for focus drive (two plates, steel pin, screw)
Retaining ring for focus drive
Spring-loaded coupling with two screws
Tango 3-axis controller and 3-axis joystick
Countersunk screw M3x6 DIN 7991 for focus drive (2)
Allen screw M3x8 DIN 912 for stage (4)
Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)
CPU and Monitor Components
High power PC with monitor and keyboard
Mouse with mouse pad
Microscope dust protection
Object micrometer
3-axis motor cable
Power cable (specify 110V or 220V)
Surge protector
Microscope Objectives
Objective Planachromat E5x/0.10
Objective Planachromat E10x/0.25
Objective Planachromat E20x/0.40
Objective Planachromat E50x/0.75
Microscope Camera
Optical C”-mount 0.5x
Digital camera CAM V3200
Camera power supply
Camera power extension cord
Camera USB cable
