EMZ-5H
Zoom Ratio: 6.5:1
Zoom Range: 0.7X – 4.5X
Magnification: 7X – 45X (10X eyepieces)
Field of View: 32mm – 5.1mm
Working distance: 93mm
Extended Mag Range: 2.1X – 270X (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
MA522: Eyepieces
Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only).
F: Focus Holder
The F holder is a focusing holder with a rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

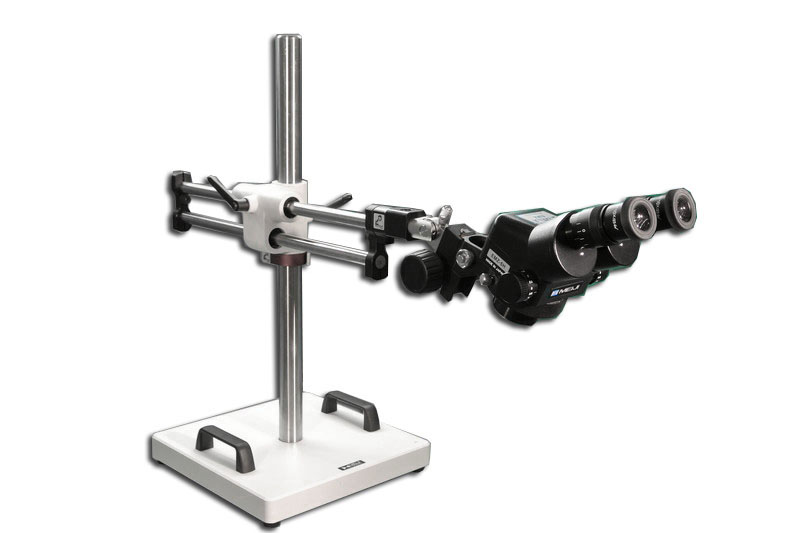

BAS-3: Stand
Type: Industrial dual-arm boom stand
Mount: 5/8” bonder mount socket (fits standard 5/8” focus blocks)
Compatible Models: EM Series stereo microscopes
Focus Blocks: Accepts FS (Coarse) and FSC (Coarse/Fine)
Movement: Smooth horizontal and vertical motion with linear ball bearings
Base Size: 13” × 13” × 1.5”
Weight: 80 lbs (approx. 36 kg)
