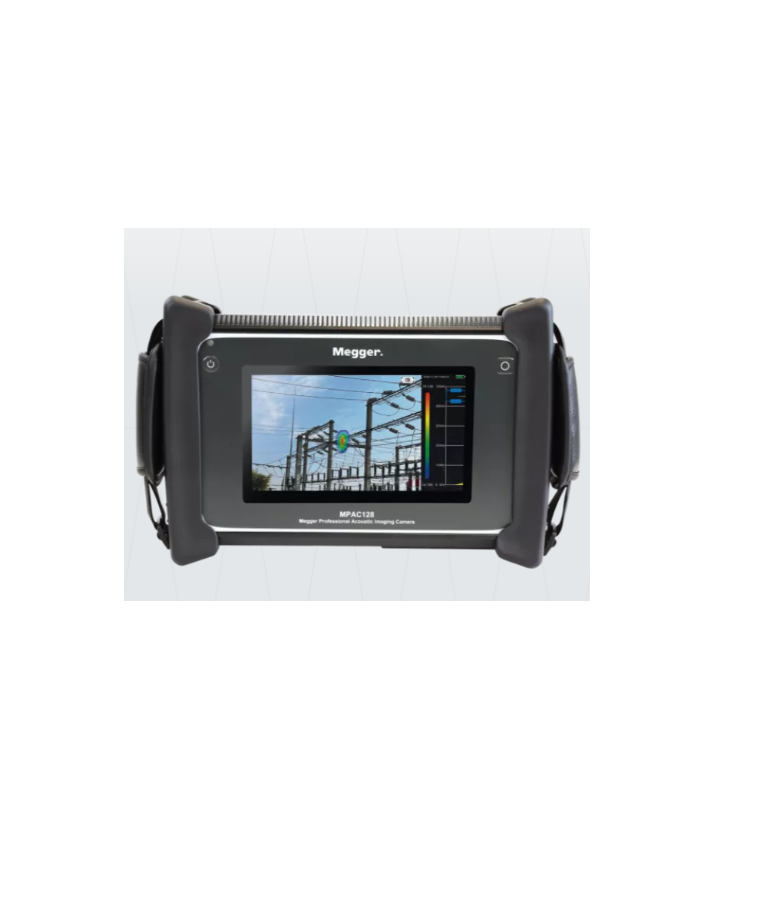

MEGGER MPAC128 ກ້ອງຖ່າຍຮູບສຽງພົບ
Detection frequency: 2 kHz to 48 kHz
Detection range: 0.3 to 120 m
Optical camera resolution: 8 megapixels
Leak detection rate:
1 m 7 bar 0.37 ml/s
10 m 7 bar 0.7 ml/s
Microphones in array: 128
Sound image field of view
Horizontal: 62°
Vertical: 48°
Meets IP54
Ease Of Use: Intuitive user interface and touch screen
Trend Graphs: Frequency and dB scale
Cursor information: dB level reading at centre point of the image
Supported Languages: English, Dutch, French, Chinese, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish
Sensors
Microphone Array: 128 channels MEMS microphone
Frequency Band: 2 kHz to 48 kHz
Dynamic Range: 0.5 dB to 12 dB (user adjustable)
Sound Image
Field of View:
(FOV) Horizontal: 62°
Vertical: 48°
Nominal Frame Rate:
25 fps (min)
Note: frames per second is a measure of how quickly the image on the screen is refreshed each second.
Test Sound Pressure Level Range: 25.7 dBA to 132.5 dBA
Acoustic measurements
Detect distances: 0.3 m to 120 m
Leak detection rate :
1 m 7 bar 0.37 ml/s
10 m 7 bar 0.7 ml/s
Number of digits: 24-bit
Auto max/min dB gain: User-selectable, minimum test bandwidth 1 kHz
Camera
Camera Focal Length: 3.04 mm fixed focal length
Camera Image Field of View (FOV):
Horizontal: 62°
Vertical: 48°
Saved Picture Zoom: Manual
Resolution: 8 megapixels
Display
Resolution: 1024 x 600
Size: 7 inches
Brightness: Adjustable
Touchscreen: Capacitive touch screen
Standard palettes: Grayscale, Ironbow, Rainbow
Storage
Internal Storage:
8 GB
Storage capacity subject to change based on software version
Image Format: JPG
Audio Format: WAV
Video Format: mp4
Video Length: 5 min
Digital Export: microSD card/USB-C memory stick
Battery
Battery Capacity: 6600 mAH, 7.2 V Rechargeable Li-ion
Battery Life: ~ 4 hours under full load state
Charge:
USB Type-C port
Output: USB-C 5.0 V 3.0 A.
Rated input: 100 240 VAC, 50/60 Hz, 1.2 A
Power Consumption: 29 W max
Energy management: User selectable Sleep/Auto power off
