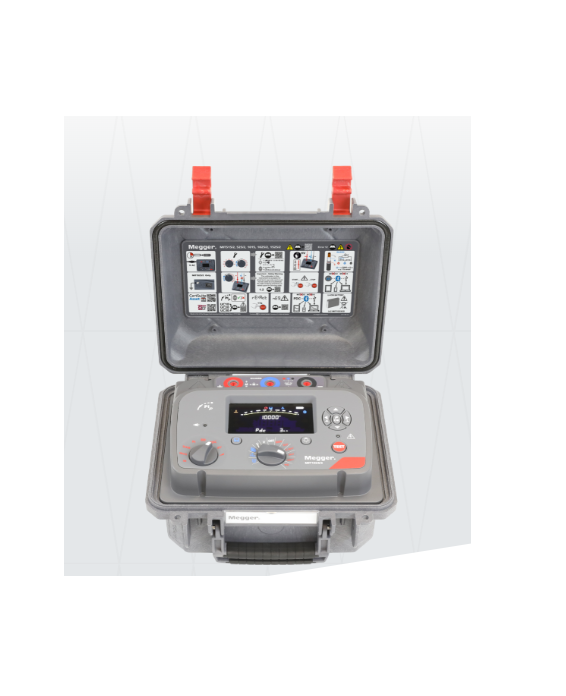

MEGGER MIT1025/2 ອຸປະກອນທົດສອບຄວາມຕ້ອງການການປົດກັນໄຟ (10000 V)
AC voltage (auto-ranging): 90-264 V rms, 47- 63 Hz 100 VA
Battery charge time 2.5 hours deep discharge, 2 hours normal discharge
Battery voltage 10.8 V, 5.2 Ah Li-ion batteries, meet IEC 62133:2003, MIT1525/2 has 2 battery pack
Battery life: 4.5 hours (typical) continuous testing at 10 kV with a 100 MΩ load
30 min quick charge: 1 hour operation at 5 kV with a 100 MΩ load
Test voltage: 500 V, 1000 V, 2500 V, 5000 V, 10000 V, User defined test voltage
Display analogue: 100 kΩ to 10 TΩ
Digital: 10 kΩ to 20 TΩ
Short circuit / charge current: 1 mA, 3 mA Default, 6 mA @ 5 kV, 10 kV, 15 kV (6 mA only from mains supply)
Insulation test alarm: 100 kΩ to 10 GΩ
Capacitor charge: <5 s/μF at 3 mA to 10 kV
Capacitor discharge: <250 ms/μF to discharge from 10 kV to 50 V
Capacitance range: 10 nF to 25 μF
With test voltage set above 500 V
Capacitance measurement accuracy: ±10% ±5 nF
Current range: 0.01 nA to 6 mA
Current accuracy: ±5% ±0.2 nA at all voltages (20 °C)
Timer range:
Up to 99 minutes 59 seconds,
15 second minimum setting
Memory capacity:
5.5 hours logging @
5 second intervals
Test modes: IR, IR(t), DAR, PI, SV, DD, PDC, Ramp test
Interface:
USB type B (device)
Bluetooth® Class 2.
Real time output: 1 Hz output readings (V, I, R)
ENVIRONMENTAL
Maximum altitude: 3000 m
Operating temperature range: -20 °C to 50 °C
Storage temperature range: -25 °C to 65 °C
Humidity: 90 % RH non-condensing at 40 °C
IP rating: IP65 (lid closed), IP40 (lid open)
Dimension: L 315 mm x W 285 mm x H 181 mm
Weight: 4.5 kg
