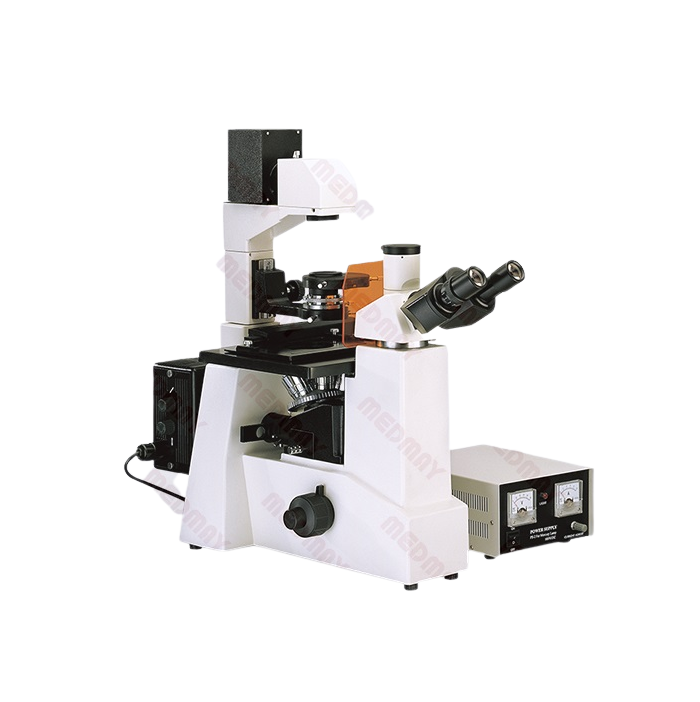

Medmay MMIC071 ກ້ອງຈຸລະທັດ fluorescent (10X, 25X, 40X)

Objective: Plan achromatic objectives: 10X, 25X, 40X; Phase contrast objectives: 10X, 25X, 40X

Eyepieces: Wide field WF10X (Φ20mm); Centering telescope

Viewing head: Trinocular, inclination of 30˚

Nosepiece: Quintuple (backward ball bearing inner locating)

Stage: Fixed stage overall size is 224mm×208mm, mechanical moving device; Moving range is 79mm (longitudinal)×112mm (transverse)

Focusing: Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm

Condenser: Turnplate phase contrast condenser, working distance is 50mm

Illumination: Epi- fluorescent illumination system: Power supply unit, 110V or 230V can be selected. Mercury lamp is 100W/DC. Multi-fluorescent filters can be selected;

Transmitted illumination System: Frosted glass and blue, green filter, 6V 30W halogen, brightness enable control
