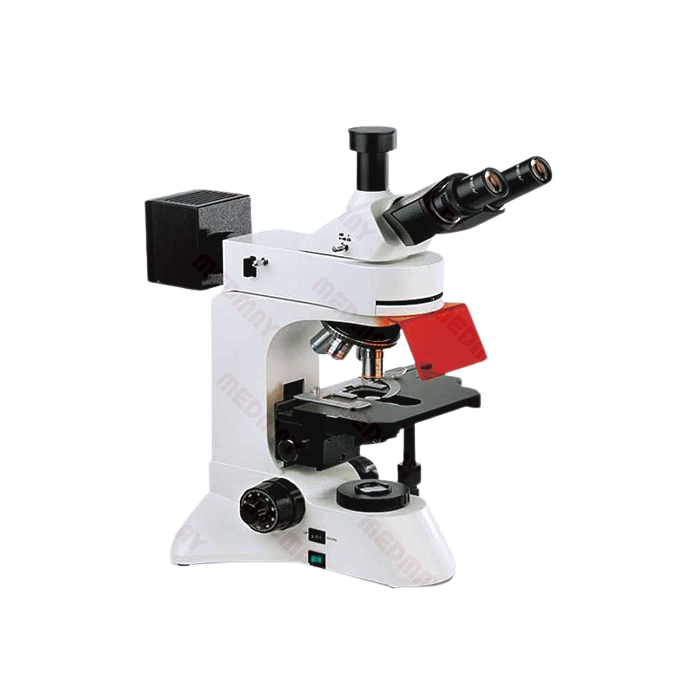

Medmay MMIC070 ກ້ອງຈຸລະທັດ fluorescent (4X~100X)

Objective: Infinity plan achromatic fluorescent objectives: 4X, 10X, 40X (S),100X (S, Oil)

Eyepieces: Wide field WF10X (Φ22mm)

Viewing head: Trinocular, inclination of 30˚

Nosepiece: Quintuple (backward ball bearing inner locating)

Stage: Double layer mechanical (Size: 210mm×140mm, moving range: 75mm×50mm)

Focusing: Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm

Condenser: Abbe condenser N.A. 1.25 rack & pinion adjustable

Illumination: Epi-fluorescent illumination system: 3W high brightness LED. Enable selecting monochromatic or bichromatic LED as light source, every monochromatic LED wave band: Green (520nm~530nm), Blue (460nm~470nm);

Transmitted illumination system: Blue filter and ground glass, 3W high brightness white LED, brightness adjustable
