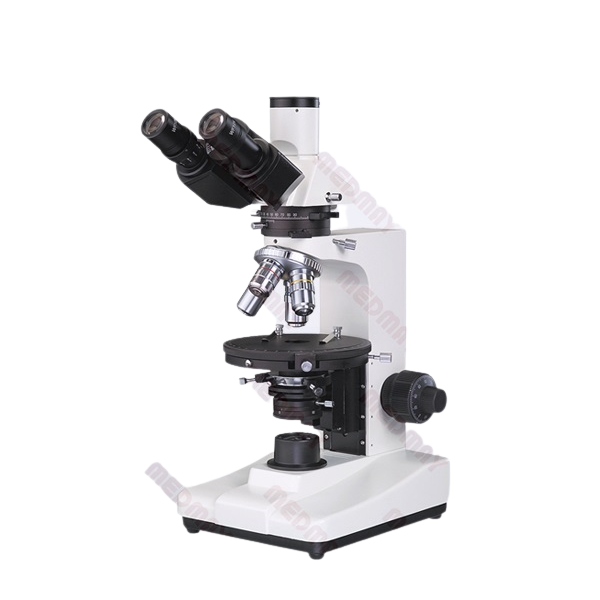

Medmay MMIC058 Polarizing Microscope (4X~100X)

Objective: Strain-free plan achromatic objectives: 4X, 10X, 40X (S), 100X (S, Oil)

Eyepieces: Wide field WF10X (Φ18mm); Dividing eyepiece (field number: Φ18mm) 0.10mm/Div

Viewing head: Trinocular is inclined 30˚ and enable to shoot in 100% light flux

Nosepiece: Quadruple (backward ball bearing inner locating)

Stage: Rotatable stage, diameter Φ150mm, 360° graduated (in 1° increments), minimum vernier division is 6', center adjustable and with tightener

Condenser: Abbe condenser N.A. is 1.25 and add iris diaphragm

Illumination: Transmitted illuminating system, 6V 20W halogen, brightness enable control
