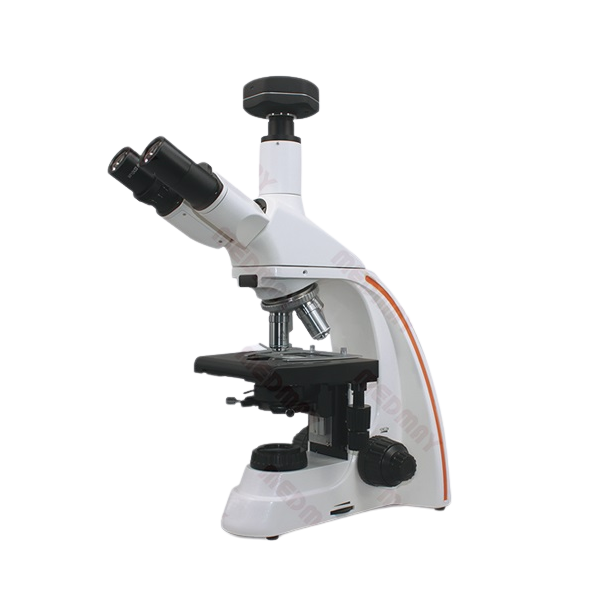

Medmay MMIC048 ກ້ອງຈຸລະທັດທາງຊີວະພາບ (4X~100X)

Objective: Infinity flat field system achromatic objectives: 4X, 10X, 40X (S), 100X (S, Oil)

Eyepieces: Wide field PL10X, 25X

Viewing head: Trinocular, hinge trinocular, 30° Tilt, 360° rotating IPD adjustment: 54mm~75mm, diopter adjustment: ±5 diopter, splitting ratio: 100:0 or 50:50

Nosepiece: Four-hole converter (revolving quadruple)

Stage: Stage size: 175mm×145mm, moving range: 76mm×50mm, precision: 0.2mm.

Stage upward moving lock protects objectives and slides. Stain-resistant double layer mechanical stage

Focusing: Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm

Condenser: N.A. 1.25 Abbe condenser with iris diaphragm

Illumination: Transmission illumination system, high light power LED, brightness could be adjusted
