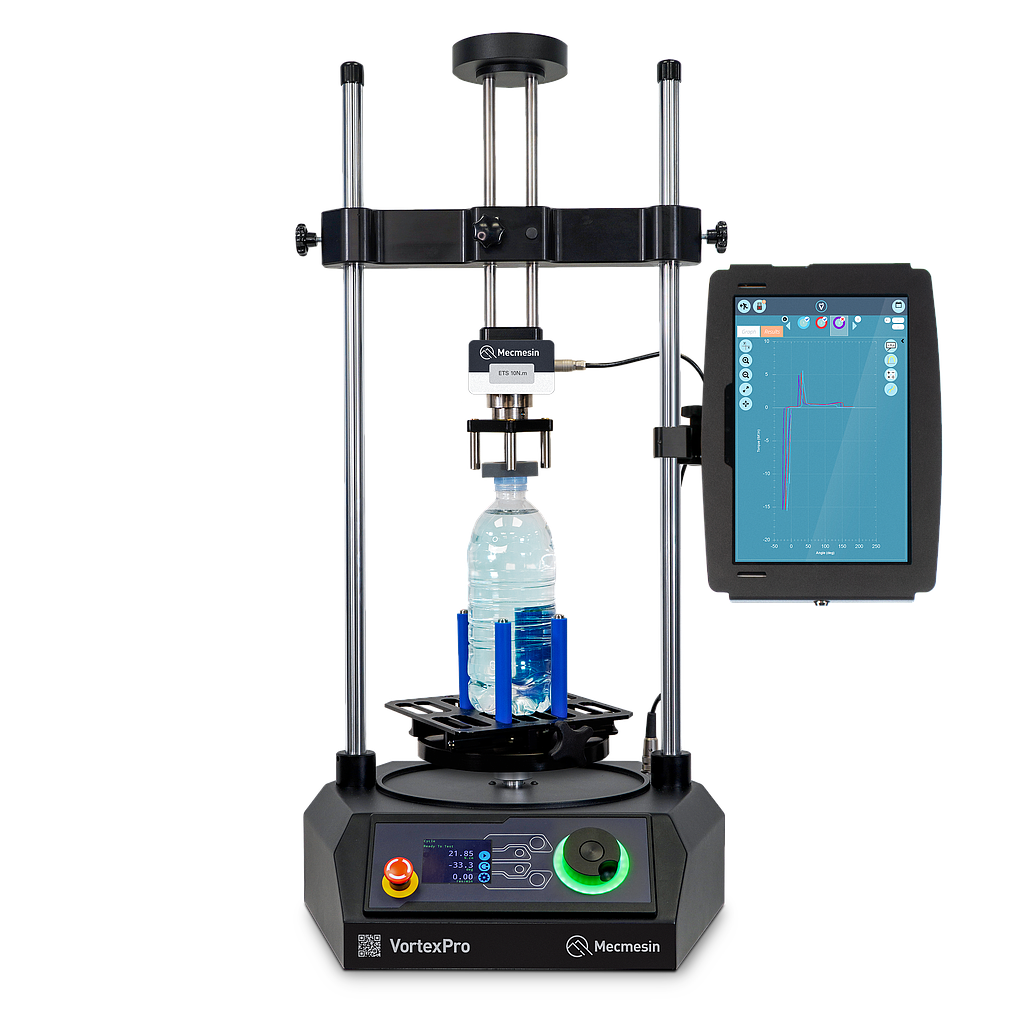

Mecmesin VortexPro Touch ເຄື່ອງທົດສອບແຮງບິດອັດຕະໂນມັດ (0 - 10 N.m)

Torque Capacity:

Test frame (rated torque)

N.m: 0 - 10

kgf.cm: 0 - 100

lbf.in: 0 - 90

Torque Measurement

Torque Sensors (ETS): 6 models, from 0.3 - 10 N.m

Accuracy: ±0.5% of full scale

Resolution: 1:50,000

Unit display: mN.m, N.cm, N.m, gf.mm, gf.cm, kgf.cm, kgf.m, ozf.in, lbf.in, lbf.ft

Sampling rate: Selectable: 10 - 1,000 Hz

Speed

Range: 0.1 - 30 rev/min (clockwise or anticlockwise)

Accuracy: ±1% of indicated speed

Resolution: 0.001 rev/min

Displacement

Angular displacement (from tared position): max. 2999 revs

Angular displacement accuracy: ±0.2°

Angular displacement resolution: 0.1°

Linear headroom (without fixtures): 483 mm

Linear travel of adjustable carriage: 182 mm

Width between columns: 280 mm

Static weights

Torque cell mass platen: 60 N (maximum)

Dimensions

Height: 1000 mm

Width: 630 mm (incl. Touch console)

Depth: 372 mm

Weight: 23 kg (incl. Touch console)

Software and Communications

Stand connectivity: USB-B (for communication to PC/Console)

Console connectivity (VortexPro Touch): 1 x USB-C (Power/Data), 3 x USB-A (Data)

PC requirements for VectorPro software (recommended): Intel Core i5, 8 GB RAM, USB 2.0 or 3.0 port, graphics - Full HD (1080p), 128 GB SSD storage

To make use of Vector Cloud Solutions, an internet connection is required.

Operating Systems: Windows 10 or 11 Pro (recommended) or better - 64 bit only

Communication with PLC/Digital Control Interface: Digital I/O - 8 input, 8 output

Data output: PDF, XLSX, CSV, TXT, email and image files can all be exported from VectorPro Software

Environment Specification

Operating temperature: 10°C - 35°C (50°F - 90°F)

Operating relative humidity: Normal industry and laboratory conditions (30-80%), non-condensing

Electrical Supply

Voltage: 230 V AC 50 Hz or 110 V AC 60 Hz

Max Power: 120 W
