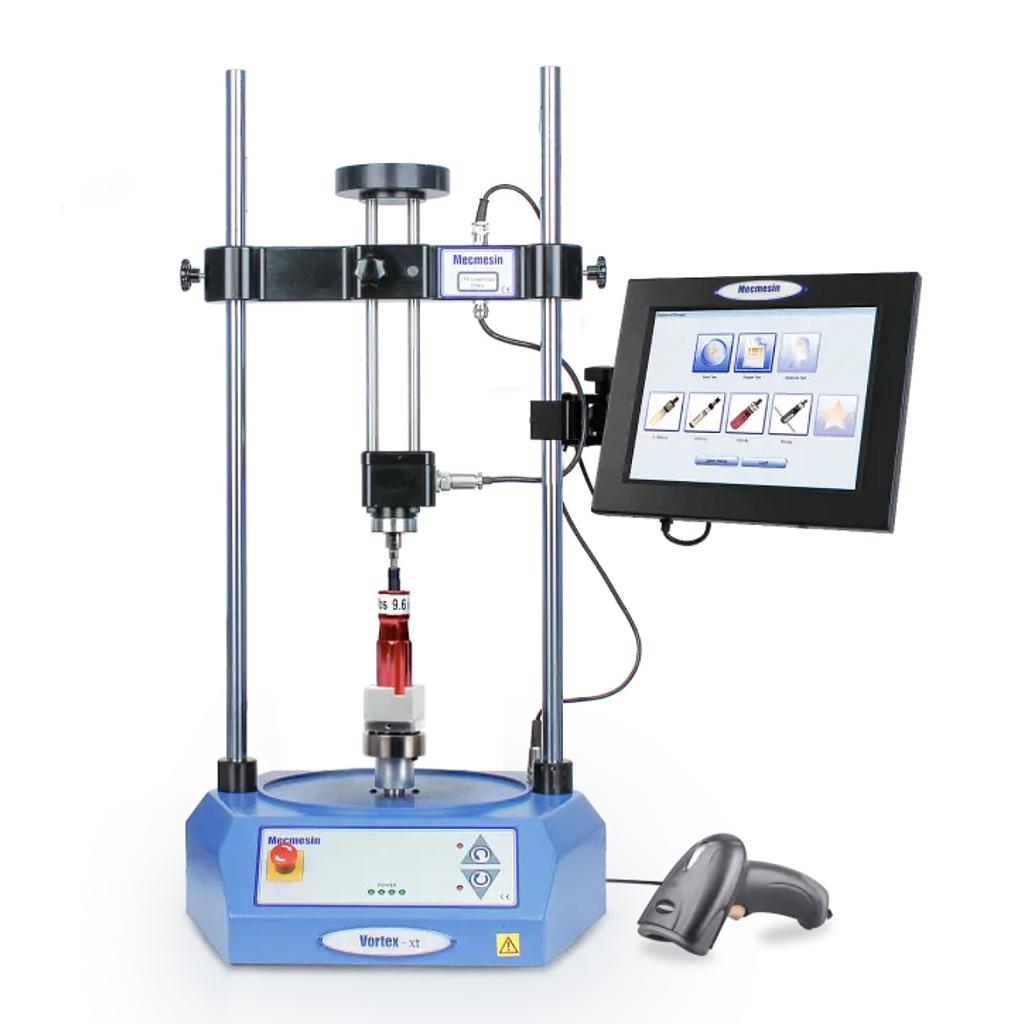

Mecmesin TSCC ກວດສອບດັດປັບສະກູຂອງແຮງບິດ
Torque

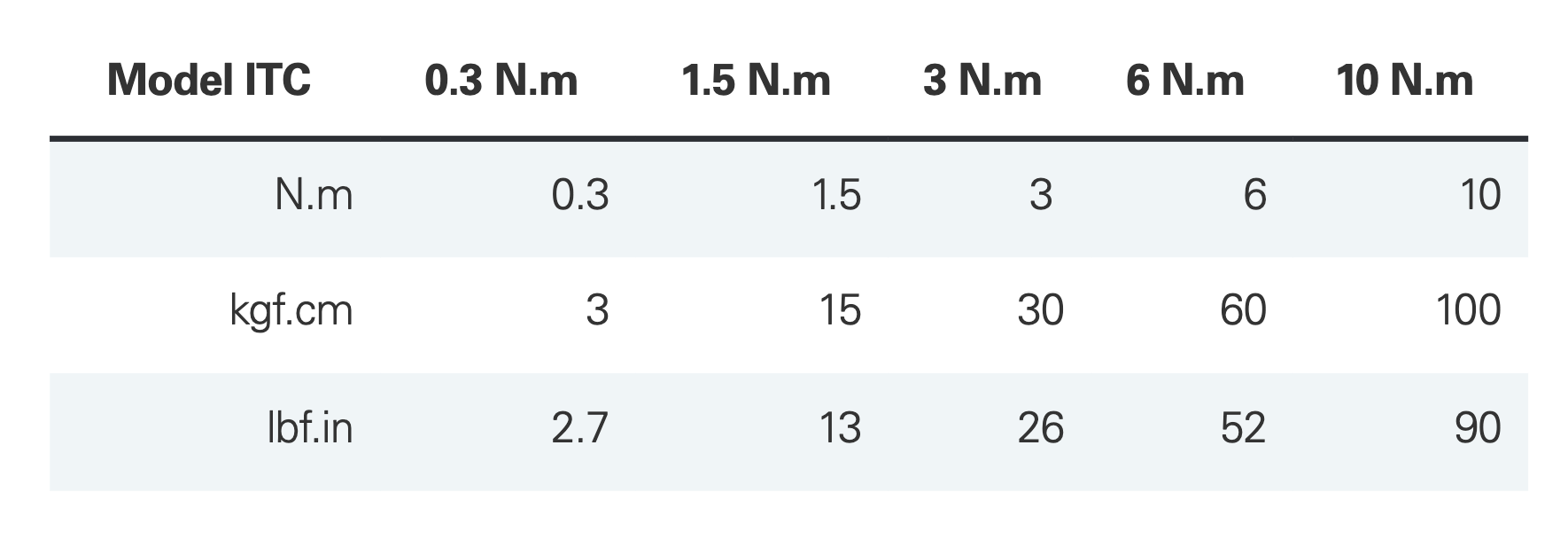

Sensors (ITC): 0.3 N.m to 10 N.m
Accuracy: ±0.5% of full scale
Resolution: 1:6500
Units of measurement: mN.m, N.cm, N.m, kgf.cm, gf.cm, ozf.in, lbf.in, lbf.ft
Angle
Maximum displacement: 2.440 revs
Speed
Speed: 0.1 - 20 rev/min (clockwise or counter-clockwise)
Accuracy: ±1% of indicated speed
Resolution: 0.01 rev/min
Dimension
Maximum headroom: 505 mm (19.9") without mounting tables; 448 mm (17.6") with mounting tables fitted
Maximum travel of adjustable carriage: 182 mm (7.2")
Width between columns: 280 mm (11.02")
Opening span of lower mounting table: 10 - 190 mm (0.39 - 7.5")
Opening span of upper mounting table: 10 - 78 mm (0.39 - 3.07")
Weight: 19.5 kg (43 lb)
Common specifications
Maximum power requirement: 100 W
Voltage: 230 V AC 50 Hz or 110 V AC 60 hz
Operating temperature: 10 - 35°C (50 - 95°F)
Humidity range: Normal industry and laboratory conditions
Compensation for system movement: No
Graphical presentation: Yes
