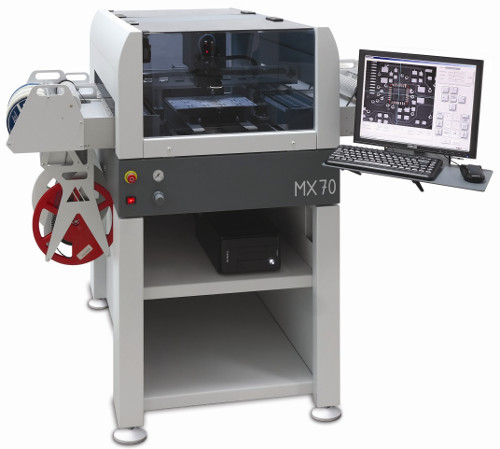

PCB: Placement area 330 × 500 mm
Feeders: 64 feeders of 8 mm tapes + 30 sticks of SO8
Components: Range from 0201 to 40 × 40 mm, pitch up to 0.4 mm
Component Packing: Tapes 8–44 mm, sticks SO8–PLCC84, trays, bulk / loose components
Placement Rate: 2000 – 2400 cph
Placement Accuracy: Better than 0.08 mm
Nozzle Changer: Automatic, 8 nozzles with automatic sensing of nozzle presence
XY Resolution: 5 µm (linear encoders as standard)
Vision System: Automatic fiducial correction, bad mark sensing, bulk components feeding, touchless centering
Angle Resolution: 0.05°
Control Panel: LCD 17’’ screen with keyboard and mouse
Options: CAD data import, dispensing head (glue/paste), tape strips feeder, bulk / loose components feeder
Dimensions & Weight: 750 × 1100 × 1350 mm, 150 kg
Power Supply: 230 V, 50 Hz, 400 W
Compressed Air Supply: 0.6 MPa, 20 l/min
Vision Centering
Fully automated placing
Automatic fiducials correction and bad mark sensing
Automatic change of nozzles
Automatic feeding of bulk / loose components
Pick & Place data can be entered manually in TEACH-IN mode or can be converted from various CAD data systems
Good price to performance ratio
